Logitrans EHL Inox Plus

Stainless Steel Electric Scissor Lift

  • Exceptional quality high lift pallet truck, made in Denmark
  • Designed for food & pharmaceutical industries where hygiene is essential
  • Able to withstand wet & aggressive environments
  • All essential parts made from AISI316L stainless steel
  • Electric lift to save time
  • 2 year warranty
Fork Size
(mm)
Info Availability Net Price
(GBP)
Buy Now
540 x 1200 3-5 Weeks £ 7,995
Buy Now
680 x 1200 3-5 Weeks £ 8,495
Buy Now
Choose From Above Level Control 3-5 Weeks £ 1,295
Buy Now
Choose From Above Remote Control Wired 3-5 Weeks £ 210
Buy Now
Choose From Above Remote Control Wireless 3-5 Weeks £ 465
Buy Now
Product Description
Key Features
Technical
Video
Brochures
Product Description
Key Features
Technical
Video
Brochures

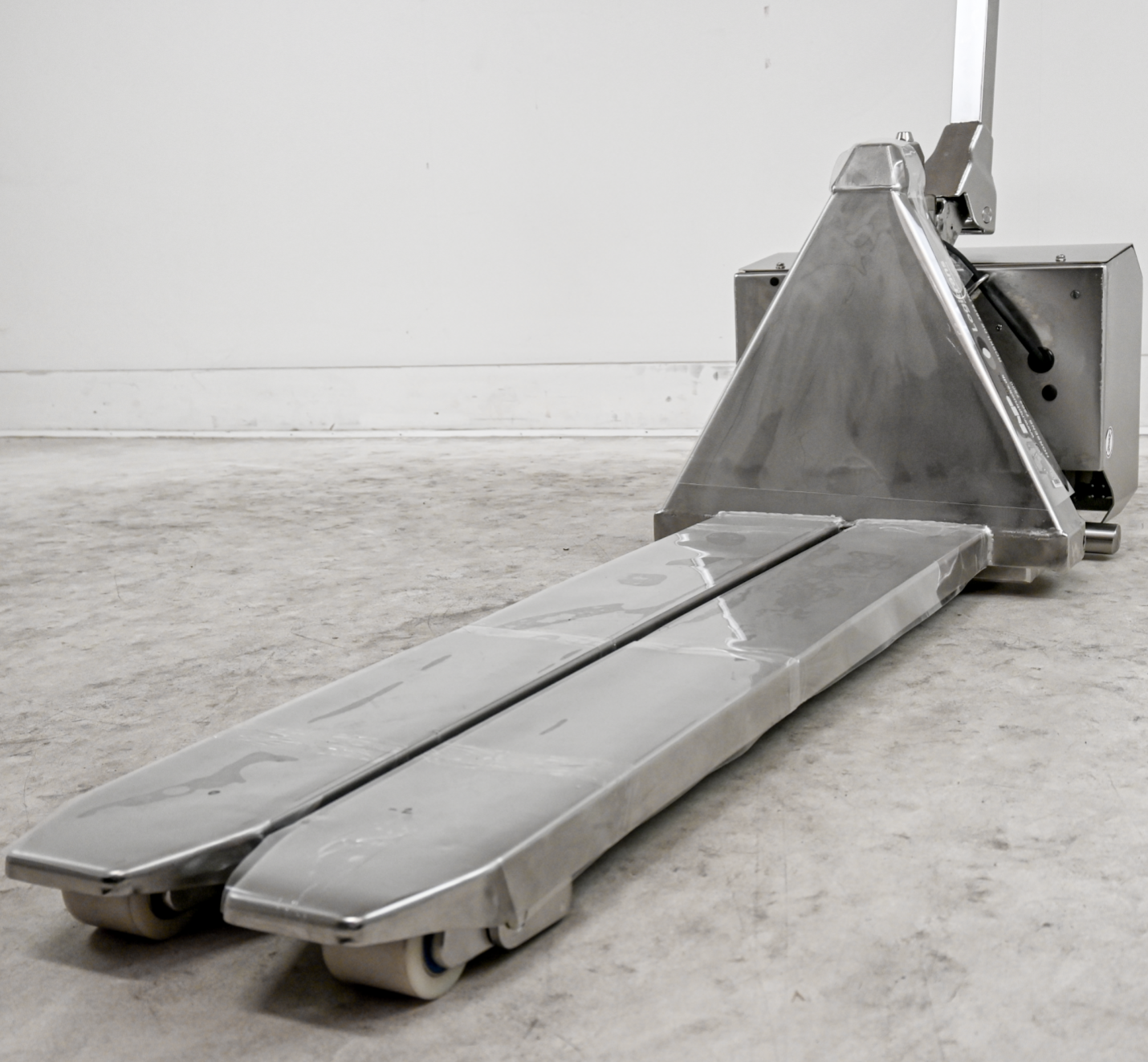

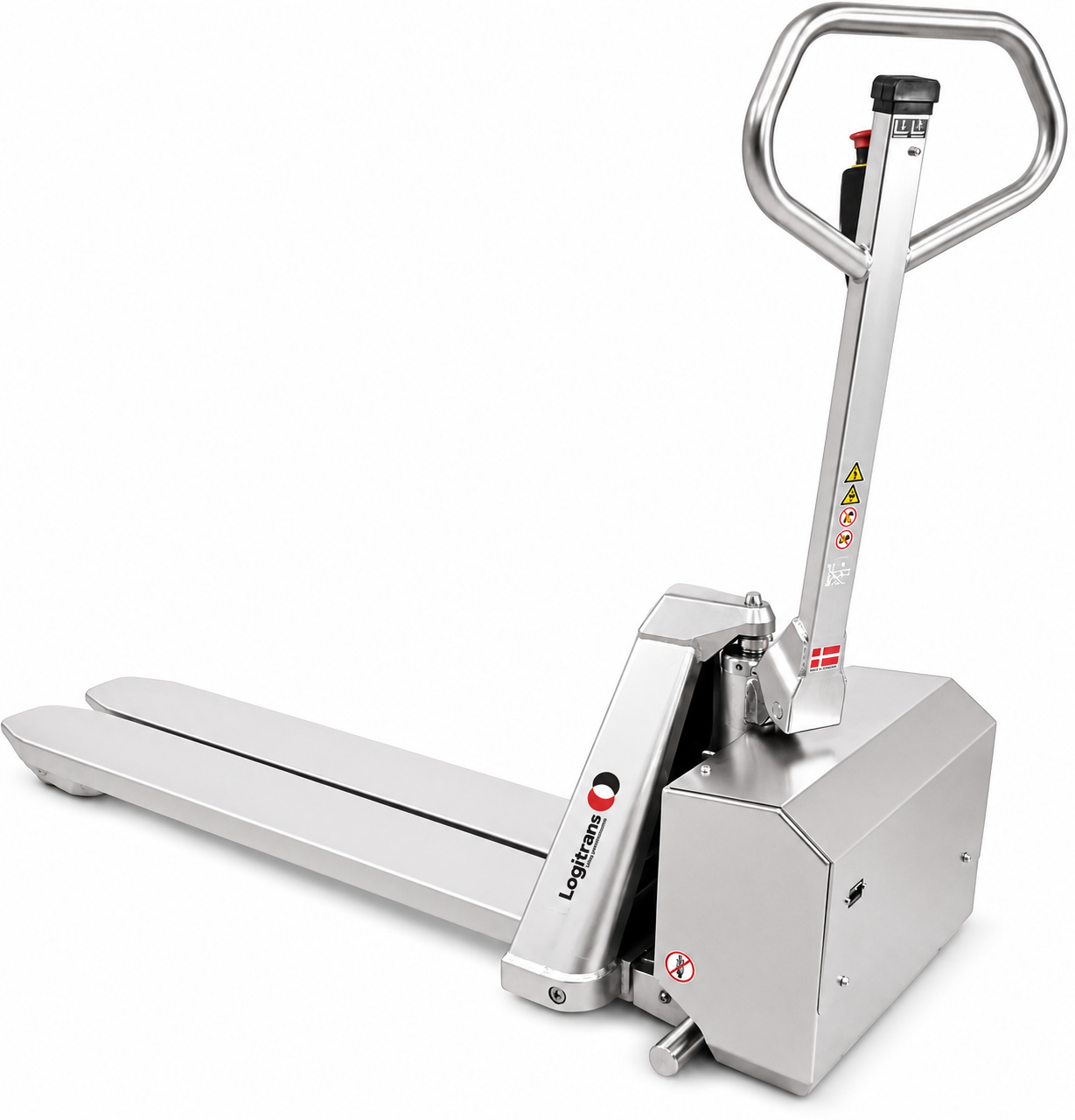

Logitrans EHL Inox Plus, EHL1004RF-PLUS, 1500kg

The EHL Inox Plus stainless steel electric High Lifter from Danish manufacturer Logitrans, is designed for optimum hygienic handling of goods. This stainless steel scissor lift is designed for high care production and packing applications, where hygiene is essential. It lifts open pallets (without bottom runners) to a correct working height for loading or unloading. Electric lift & lower saves time.

Loads of up to 1500kg can be transported and lifted up to 470mm. From 470mm, the lifting capacity is 1000kg.

Logitrans has developed the EHL Inox Plus for environments where strict hygiene is needed (eg food production and pharmaceutical). It also provides superior protection against corrosion in wet environments, or in applications where salt or harsh chemicals are present - all essential parts are manufactured from stainless steel. If your application requires stainless steel surfaces only where product is in direct contact with them, then an alternative EHL Inox is also available.

For busy packing applications, remote control is available, while Level Control saves even more time by automatically adjusting the pallet to the correct working height, as it is packed or unpacked.

The design focuses on the safety and ergonomic working conditions of the user. High quality is ensured through an extended test programme and in co-operation with experts in health and safety.

Suitable for lifting open sided pallets, where no bottom runners are present. A stainless steel straddle pallet lifter is available for Chep pallets with bottom runners.

Features:

Key Features

Nothing to show

Logitrans EHL Inox Plus, EHL1004RF-PLUS, 1500kg

Technical Data
Unit
Info
Model
EHL Inox Plus
Operator Type
Pedestrian
Lift Type
Electric
Load Capacity
Kg
1500
Net Weight (without battery)
Kg
132
Dimensions
Unit
Info
Lowered Height (Forks)
mm
90
Lift Height
mm
800
Fork Span
mm
540, 680
Fork Length
mm
1200
Individual Fork Width
mm
163
Overall Length
mm
1645
Length without forks
mm
445
Aisle width (Euro Pallet: 800 x 1200)
mm
1890
Wheels
Unit
Info
Fork Roller Material
Nylon or Polyurethane
Steering Wheel Material
Nylon or Polyurethane
Drive & Performance
Unit
Info
Battery Voltage/Capacity A/h
V / A/h
12 / 70
Battery Type
Maintenance Free
Lift Motor Rating
Kw
1.2 12V
Lift Speed with/without load
m/ s
0.05 / 0.08
Lowering Speed with/without load
m/ s
0.07 / 0.05
