E-Stacker Straddle, ES10-22MM / ES12-25MM, 1000kg or 1200kg

The E-Stacker Straddle from EP Equipment is a robust and fully powered stacker truck with straddle support legs for handling both open and closed pallets (with or without bottom runners). It is suitable for most light-medium duty warehouse pallet handling applications. A wrapover version is also available for handling open pallets via sides where bottom runners are not present.

It has a 1 tonne lift capacity  and a compact mono-mast design, for excellent operator visibility and adjustable forks and straddle legs, for handling many different pallet types. A larger 1200kg capacity version is also available. Handle control buttons are positioned either side, to allow left and right handed operation.

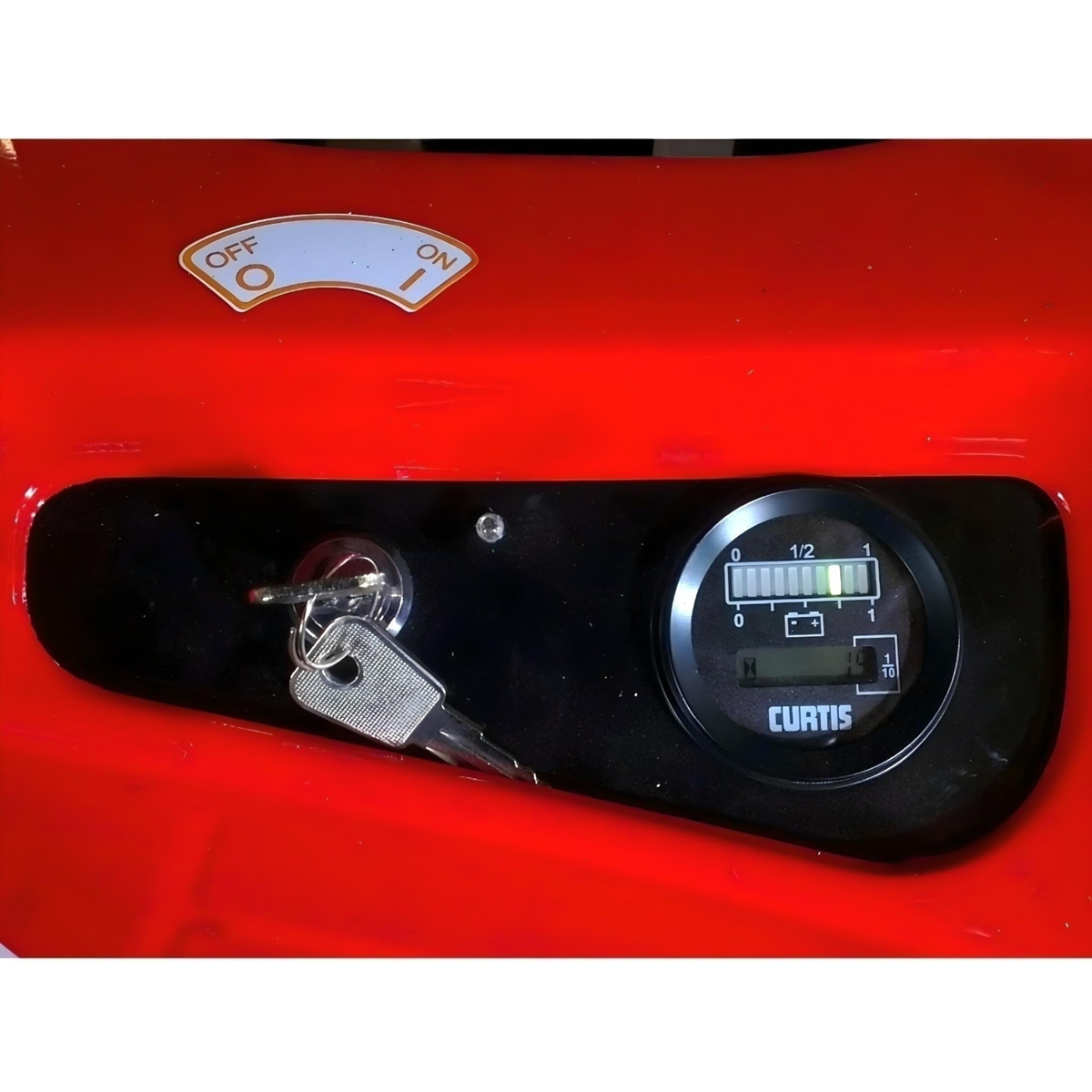

The E-Stacker Straddle is fitted with a high quality programmable speed controller, so that travel speed can be set to suit the environment and operator. Fitted with an on-board hour meter and battery discharge indicator, The E-Stacker Straddle is available with a choice of lift heights.

Features:

Key Features

Nothing to show

E-Stacker Straddle, ES10-22MM, 1000kg

Technical Data
Unit
Info
Model
E-Stacker Straddle
Operator Type
Pedestrian
Lift Type
Electric
Load Capacity
Kg
1000
Dimensions
Unit
Info
Lowered Height (Forks)
mm
60
Lift Height
mm
1600
Fork Span
mm
Adjustable 200-765
Fork Length
mm
1070
Individual Fork Width
mm
100
Length without forks
mm
500
Width between Straddle Legs
mm
Adjustable 1135-1435
Aisle width (Euro Pallet: 800 x 1200)
mm
2100
Aisle width (UK Pallet: 1000 x 1200)
mm
2175
Wheels
Unit
Info
Fork Roller Material
Polyurethane
Drive Wheel Material
Polyurethane
Drive & Performance
Unit
Info
Drive Motor Power (Kw)
kw
0.65
Travel Speed, loaded/unloaded (Km/h)
Km/h
3.5 / 4
Battery Voltage/Capacity A/h
V / A/h
24 / 85
Battery Type
Maintenance Free 2 x 12V
Lift Motor Rating
Kw
2.2
Lift Speed with/without load
m/ s
0.12 / 0.22
Lowering Speed with/without load
m/ s
0.12 / 0.11
