|Fork Size |
|Lift Height |
|570 x 1150||3300||1 Week||£ 7,995|
|685 x 1150||3300||8-10 Weeks||£ 7,995|

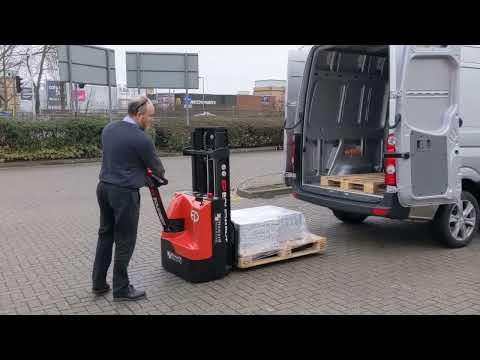

The ES15-15ES from EP Equipment is a high quality fully powered pallet stacker, with a large 1500kg load capacity. The strong duplex mast design allows pallets to be lifted to a height of up to 4150mm* (a choice of lift heights is available). It is ideal for medium duty pallet handling applications. With wrapover forks, it lifts and transport open pallets (eg EURO pallets) via sides where bottom runners are not present. A straddle version is also available for handling closed Chep pallets with bottom runners.
Small dimensions and a tight turning angle are a feature of this model: it can move along narrow aisles & corriodors, through doorways and can navigate tight corners with ease. Other stacker features include low noise and soft compound wheels that are gentle on flooring - making it perfect for shops, showrooms, store rooms and anywhere where space for a pallet lifter is limited. Handle control buttons are positioned either side, to allow left and right handed operation.
The ES15-15ES is fitted with a high quality programmable AC speed controller, so that travel speed can be set to suit the environment and operator. Fitted with an on-board hour meter and battery discharge indicator.
* Please refer to rated capacities graph for load capacity at lift height 2500mm and above.
|Model||EP Equipment ES15-15ES|
|Net Weight (including battery)||755|
|Lowered Height (Forks)||88|
|Lift Height||3315 (2515 / 2715 / 3015 / 3600 / 3900 / 4150 optional)|
|Fork Span||570 (685 optional)|
|Individual Fork Width||170|
|Overall Mast Height (Lowered / Lifted)||2128 / 3743|
|Length without forks||575|
|Aisle width (Euro Pallet: 800 x 1200)||2260|
|Aisle width (UK Pallet: 1000 x 1200)||2340|
|Fork Roller Material||Polyurethane|
|Drive Wheel Material||Polyurethane|
|Drive & Performance||Info|
|Drive Motor Power (Kw)||1.27|
|Travel Speed, loaded/unloaded (Km/h)||5 / 5.5|
|Max Gradeability on slopes, loaded / unloaded||8 / 16|
|Battery Voltage/Capacity A/h||24 / 125|
|Battery Type||Maintenance Free|
|Charger Internal or External / Rating||Internal|
|Lift Motor Rating||3|
|Lift Speed with/without load||0.13 / 0.2|
|Lowering Speed with/without load||0.13 / 0.13|
