|Fork Size |
|540 x 1200||3-5 Weeks||£ 7,995|
|680 x 1200||3-5 Weeks||£ 8,495|
|Choose From Above||Level Control||3-5 Weeks||£ 1,295|
|Choose From Above||Remote Control Wired||3-5 Weeks||£ 210|
|Choose From Above||Remote Control Wireless||3-5 Weeks||£ 465|

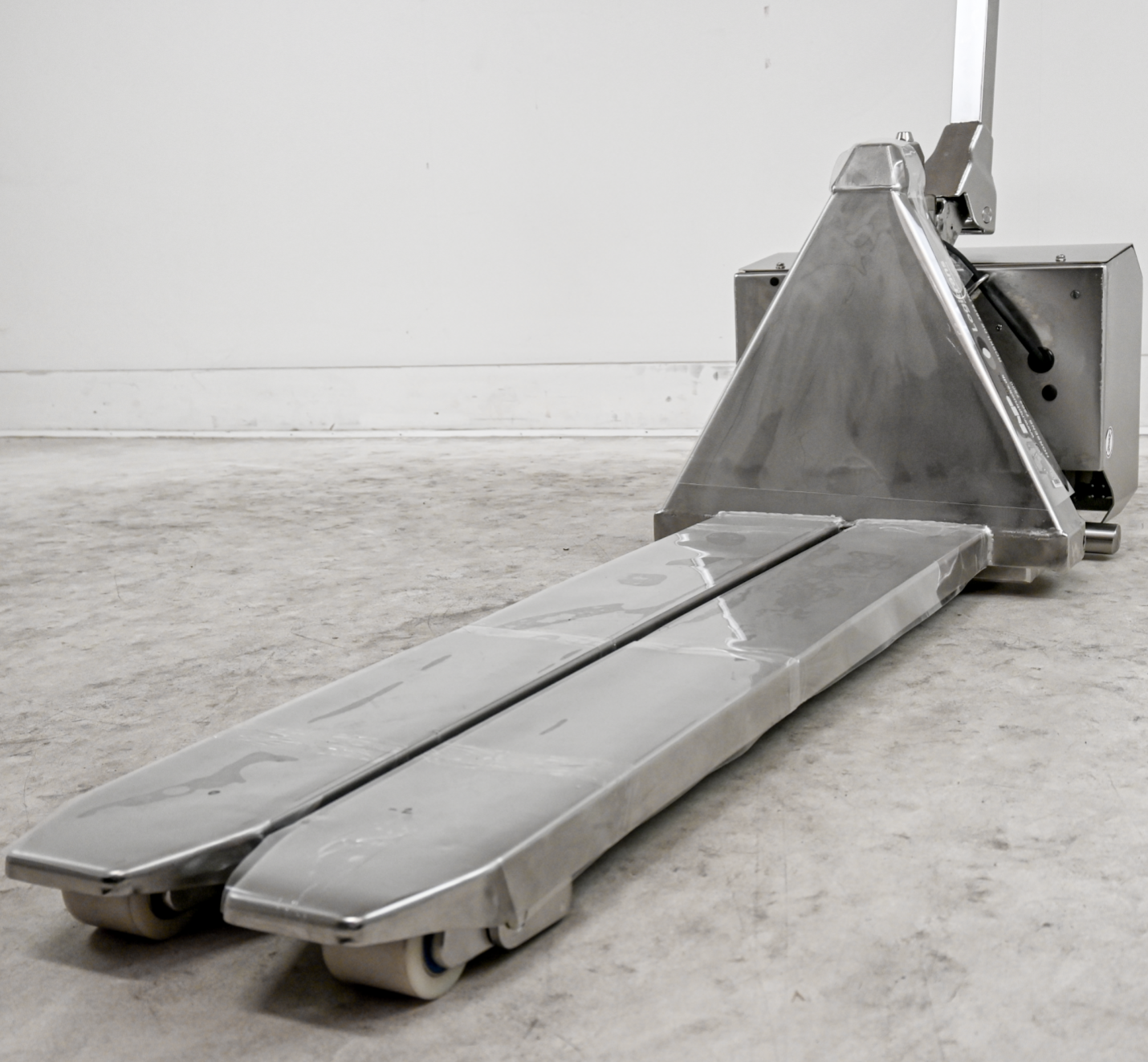

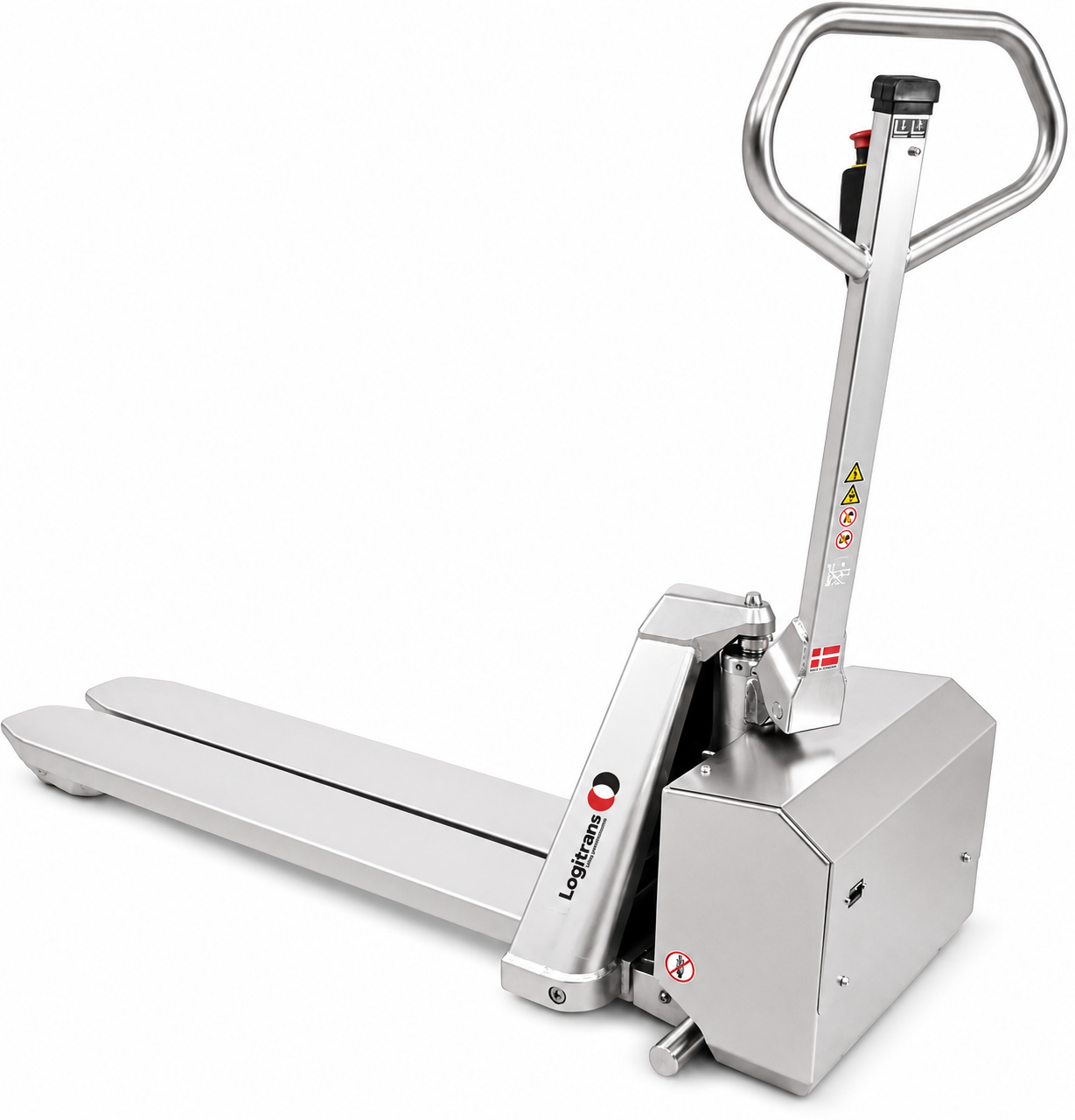

The EHL Inox Plus stainless steel electric High Lifter from Danish manufacturer Logitrans, is designed for optimum hygienic handling of goods. This stainless steel scissor lift is designed for high care production and packing applications, where hygiene is essential. It lifts open pallets (without bottom runners) to a correct working height for loading or unloading. Electric lift & lower saves time.
Loads of up to 1500kg can be transported and lifted up to 470mm. From 470mm, the lifting capacity is 1000kg.
Logitrans has developed the EHL Inox Plus for environments where strict hygiene is needed (eg food production and pharmaceutical). It also provides superior protection against corrosion in wet environments, or in applications where salt or harsh chemicals are present - all essential parts are manufactured from stainless steel. If your application requires stainless steel surfaces only where product is in direct contact with them, then an alternative EHL Inox is also available.
The design focuses on the safety and ergonomic working conditions of the user. High quality is ensured through an extended test programme and in co-operation with experts in health and safety.
Suitable for lifting open sided pallets, where no bottom runners are present. A stainless steel straddle pallet lifter is available for Chep pallets with bottom runners.
|Model||EHL Inox Plus|
|Net Weight (without battery)||132|
|Lowered Height (Forks)||90|
|Fork Span||540, 680|
|Individual Fork Width||163|
|Length without forks||445|
|Aisle width (Euro Pallet: 800 x 1200)||1890|
|Fork Roller Material||Nylon or Polyurethane|
|Steering Wheel Material||Nylon or Polyurethane|
|Drive & Performance||Info|
|Battery Voltage/Capacity A/h||12 / 70|
|Battery Type||Maintenance Free|
|Lift Motor Rating||1.2 12V|
|Lift Speed with/without load||0.05 / 0.08|
|Lowering Speed with/without load||0.07 / 0.05|
