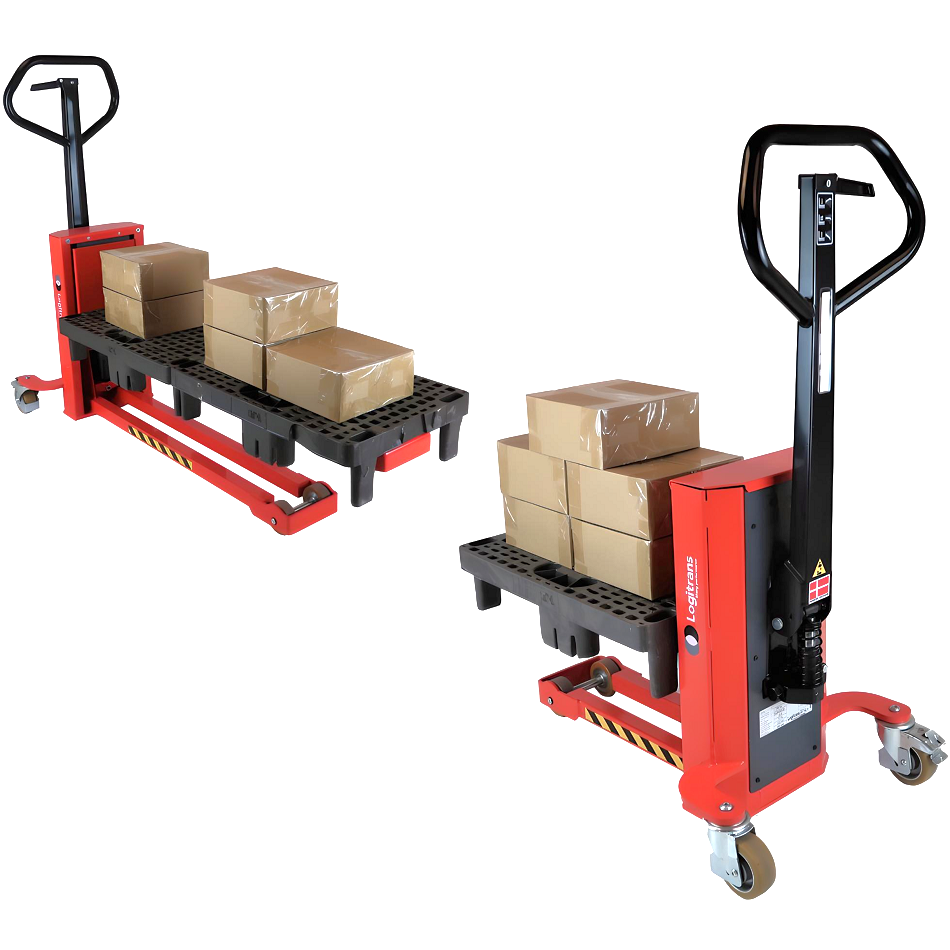

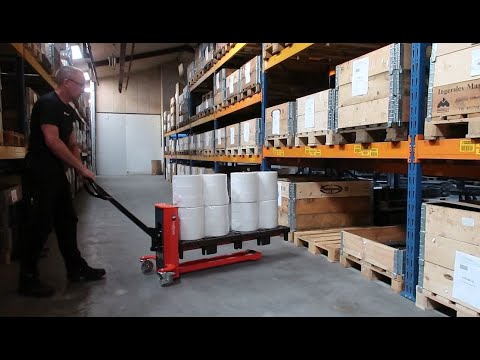

Logitrans LogiQ 200, Quarter Pallet Hand Pallet Truck (Transport)
Logitrans LogiQ 300: Quarter Pallet Hand Pallet Truck (De-palletise & transport)

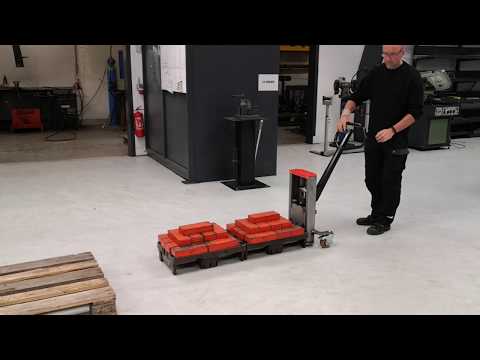

Logitrans DLQ 200: Quarter Pallet Hand Pallet Truck (De-palletise & transport 2 pallets at a time)
From Danish manufacturer Logitrans, the LogiQ provides easy and smooth handling of quarter pallets. The quarter pallet lifters, LogiQ 200, LogiQ 300 and DLQ 200 are indispensable partners, when transporting quarter pallets in e.g. supermarkets, storage and packing areas, and petrol stations.
Quarter pallets are often used for display pallets. LogiQ trucks are therefore perfect when transporting display pallets to the location of display in the shop.
LogiQ is very manoeuvrable and can operate everywhere. The handles have ergonomically correct gripping angles, ensuring the user a relaxed hold. The wheels ensure a comfortable and noiseless transport - and are gentle to flooring and flagstones in shops and showrooms.
- Excellent European manufacturing
- Designed for supermarkets, petrol stations, shops, showrooms and other customer areas
- Low noise and gentle to flooring
- Single blade fork for lifting and transporting quarter pallets and display pallets to the shop floor
- Foot protectors
- 2 year parts warranty
- Designed for transporting quarter pallets from floor to the display location
- Pallets are lifted from the floor in one handle stroke
- 200kg capacity
- Higher lift height, for unloading quarter pallets from a standard EUR pallet (size 800 x 1200mm)
- Pallets are lifted from the floor with only half a pump stroke and only 5 pumps required to lift pallet to top position
- 300kg capacity
- Longer fork length of 1200mm: can lift (from a EUR pallet) and transport 2 quarter pallets at a time
- Solves the problem of reaching the second quarter pallet at the far end of the EUR pallet. No need to move the pallet and pick up the quarter pallet from the other side!
- 200kg capacity
Logitrans LogiQ 200, Quarter Pallet Hand Pallet Truck
Logitrans LogiQ 300: Quarter Pallet Hand Pallet Truck
Logitrans DLQ 200: Double Quarter Pallet Hand Pallet Truck
|Model||LQHM200 / LQHM300 / DLQ200|
|Load Capacity||200 / 300 / 200|
|Net Weight (without battery)||22 / 47 /|
|Lowered Height (Forks)||85|
|Lift Height||115 / 325 / 325|
|Fork Span||205 / 200 / 200|
|Fork Length||600 / 600 / 1200|
|Overall Length||860 / 900 / 1500|
|Length without forks||260 / 300 / 300|
