Logitrans Logitilt Inox LTI, Stainless Steel, 1000kg

The Logitrans stainless steel Logitilt lifts and tilts box pallets, crates, stillages and dolavs to a 90 degree angle, so the contents can be easily accessed without the need for bending and stretching. It is designed for food and pharmaceutical applications, in high care production and packing areas with high hygiene requirements. With the stainless Logitilt, the risk of bacterial contamination is minimised.

All surfaces in direct contact with the goods being handled are manufactured from stainless steel. The Logitilt Inox offers a high degree of protection against corrosives and is useful in areas where harsh cleaning agents may be used. It is ideal for meat, fish, dairy, pharmaceutical and chemical applications.

The design focuses on safety and ergonomic working conditions for the user. The Logitilt Inox can tilt a box or crate up to 90 degrees and the height can be adjusted for both sitting and standing working positions. The tilt angle can be set, so that the Logitilt automatically stops at the correct angle for the user. The tilt function is operated via a remote control hanset (wired). A wireless remote control is also available as an option.

The LTI model has wrapover support legs, for handling open sided crates and boxes (via sides where no bottom runners are present). A Logitilt LTIS model is also available, with straddle support legs for handling crates via sides with bottom runners. Please contact us for details.

Customise your Logitilt: for non standard box and crate sizes, the Logitilt can be supplied with a custom bespoke fork width and fork length. It can also be customised with special features, for lifting & turning non-palletised items (eg hospital beds). Please contact us to discuss your application.

From Danish manuacturer Logitrans, very high quality standards are ensured through an extended test program. All Logitrans products are supplied with a 2 year manufacturer's parts warranty.

Features:

Key Features

Nothing to show

Logitrans Logitilt Inox, LTI, Stainless Steel, 1000kg

Technical Data
Unit
Info
Model
Logitilt Inox
Operator Type
Pedestrian
Lift Type
Electric
Load Capacity
Kg
1000
Net Weight (without battery)
Kg
173
Dimensions
Unit
Info
Lowered Height (Forks)
mm
85
Lift Height
mm
275
Fork Span
mm
560
Fork Length
mm
800
Individual Fork Width
mm
163
Overall Width
mm
780
Overall Length
mm
1410
Length without forks
mm
590
Height, Tilted
mm
Adjustable 750-950
Wheels
Unit
Info
Fork Roller Material
Nylon or Polyurethane
Steering Wheel Material
Nylon or Polyurethane
Drive & Performance
Unit
Info
Battery Voltage/Capacity A/h
V / A/h
12 / 70
Battery Type
Maintenance Free
Lift Motor Rating
Kw
0.8 12V
Lift Speed with/without load
m/ s
lift/tilt 4 / 14
Lowering Speed with/without load
m/ s
lift/tilt 3 / 11

More Images

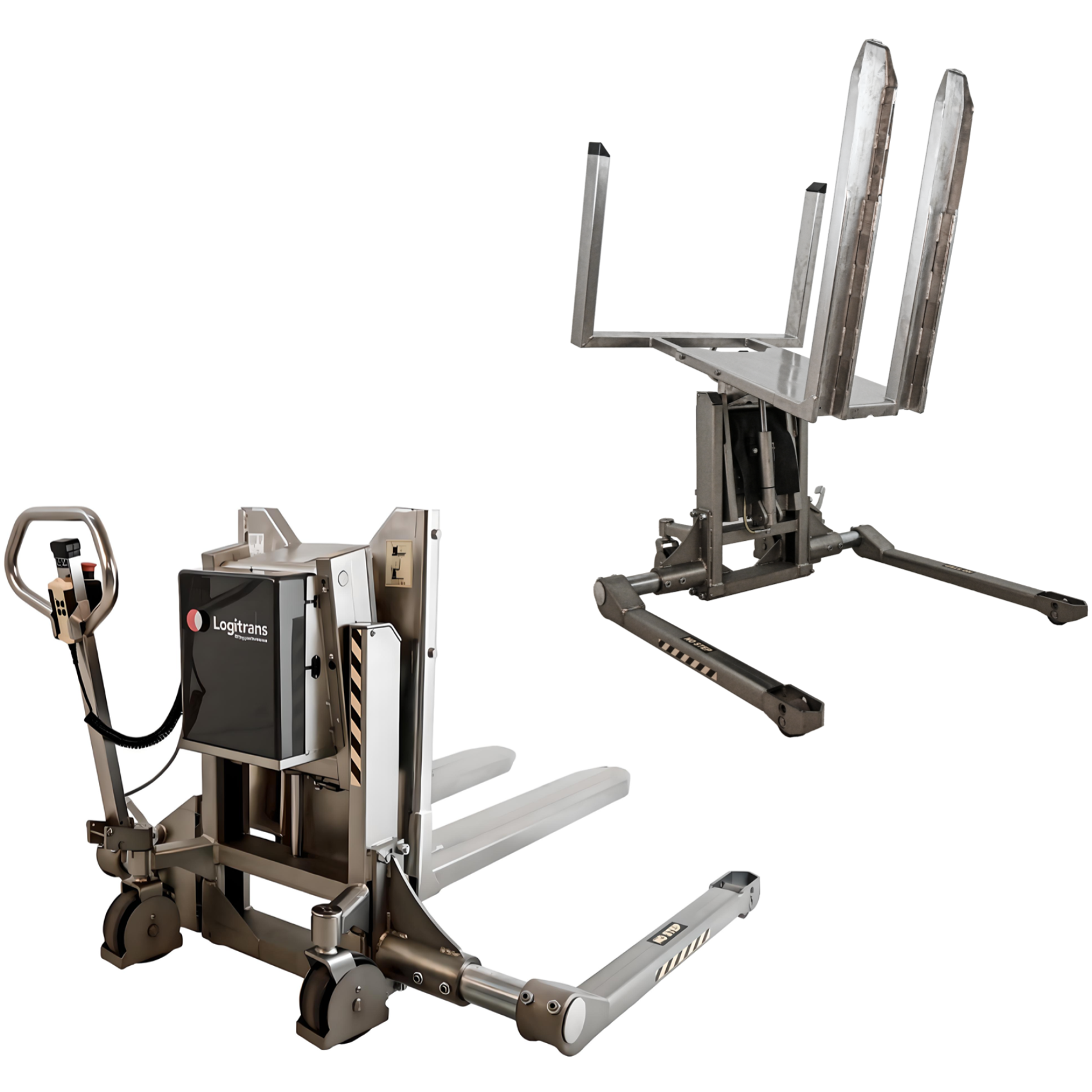

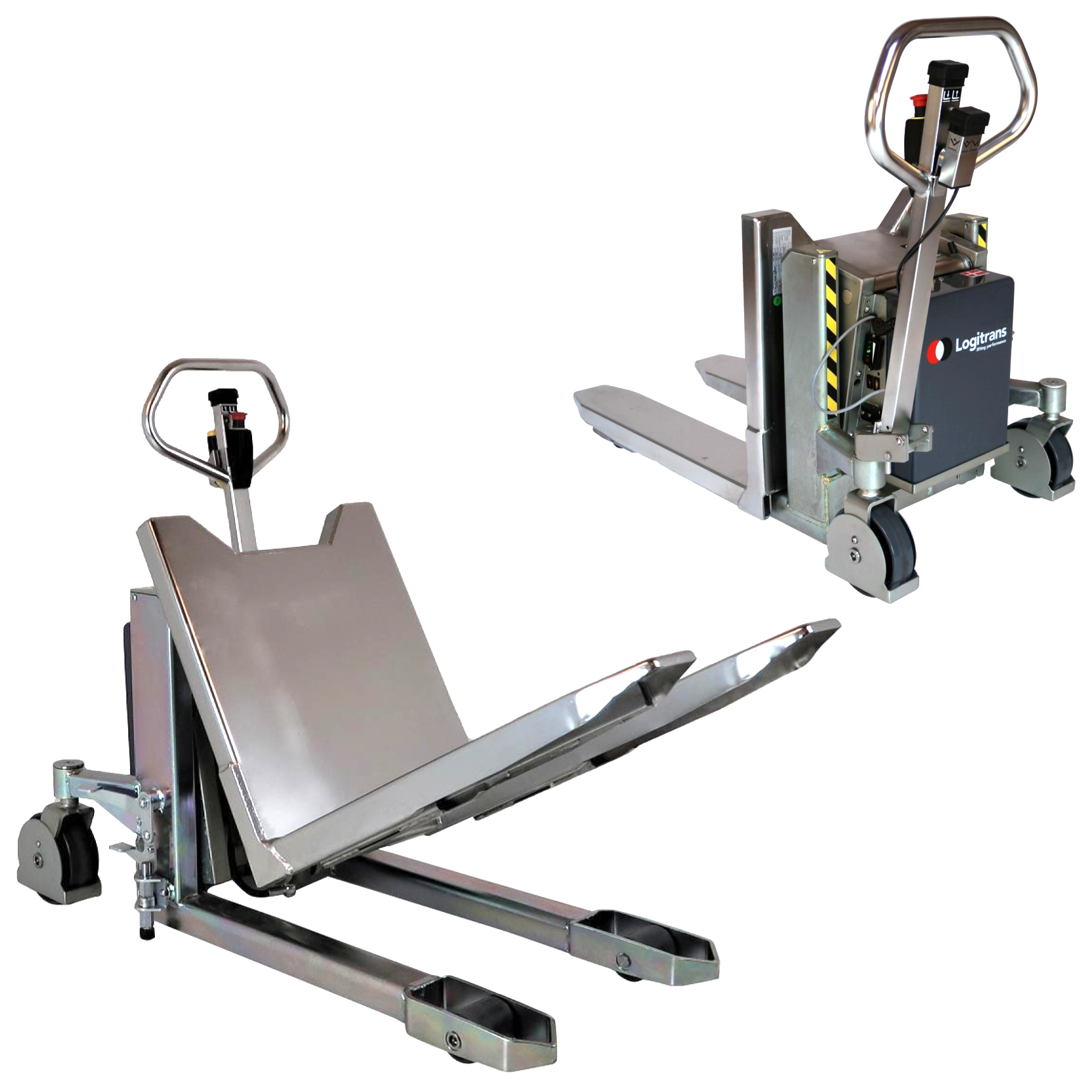

Logitrans Logitilt Inox

Stainless Steel Electric Crate Tilter

  • Designed for areas with high hygiene requirements - eg food and pharmaceutical
  • Empty and fill boxes, crates, stillages and dolavs without the need for bending and stretching
  • Wrapover forks for handling open box pallets (without bottom runners)
  • Tilts to a 90 degree angle, with adjustable height for sitting and standing positions
  • Excellent European manufacturing (Denmark), 2 year warranty
