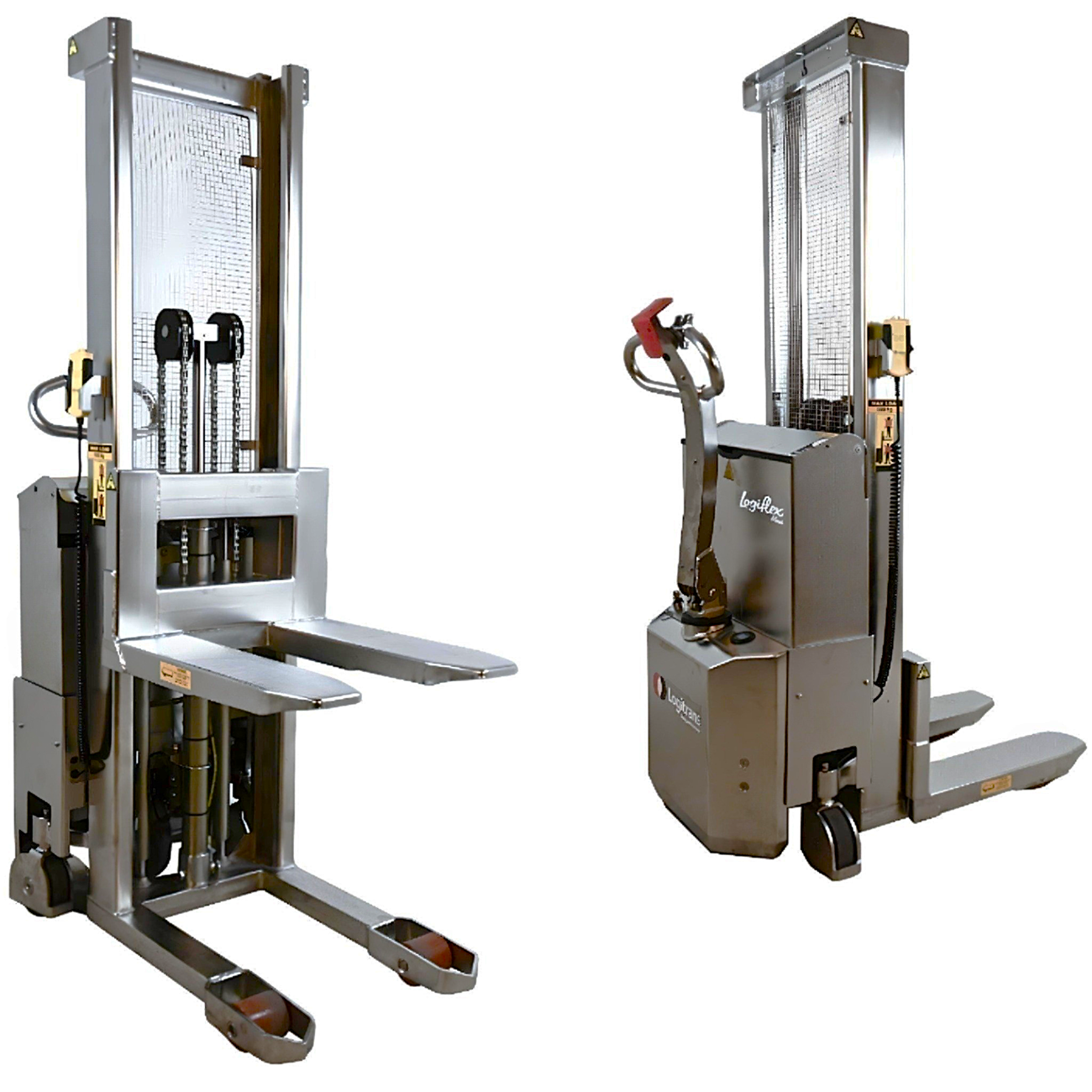

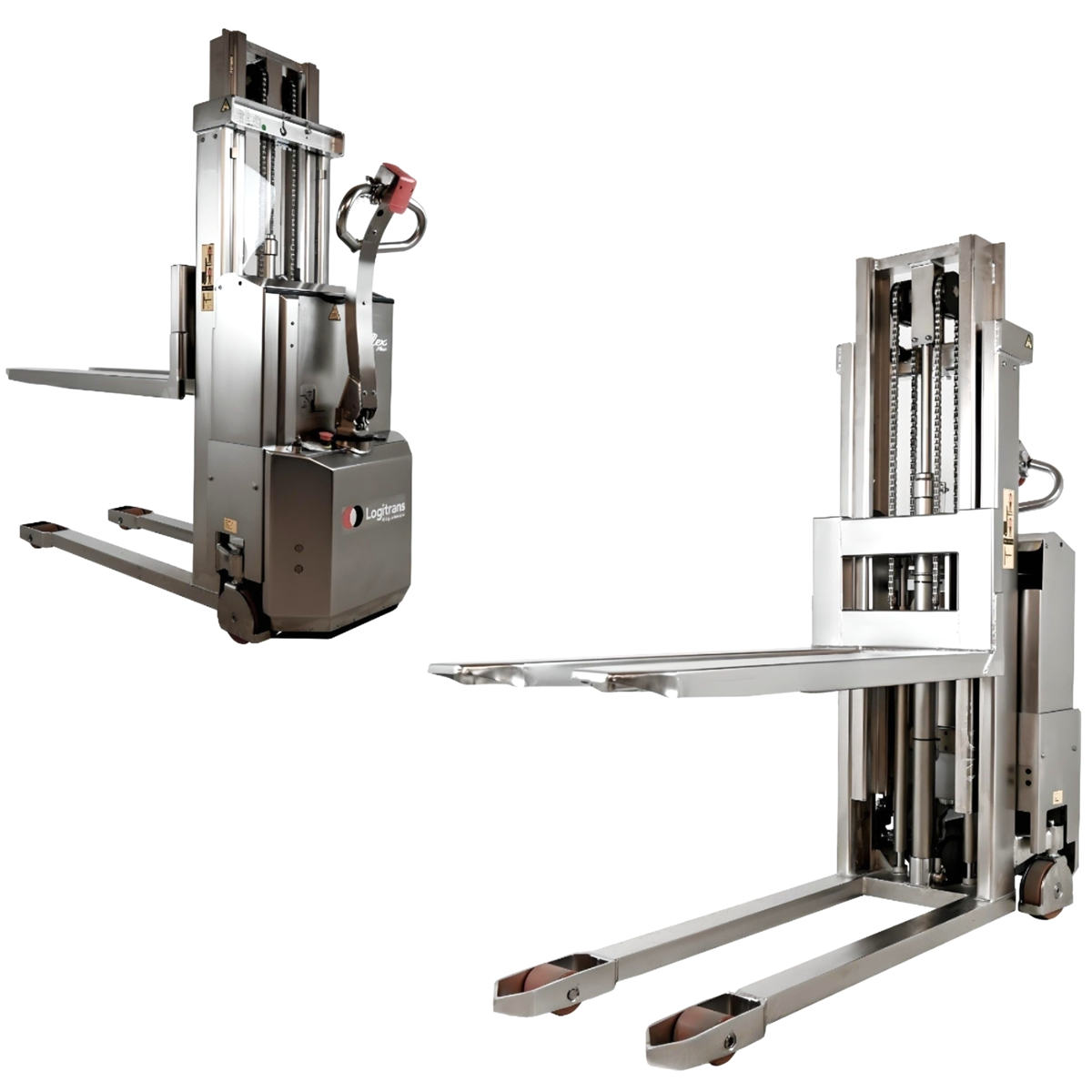

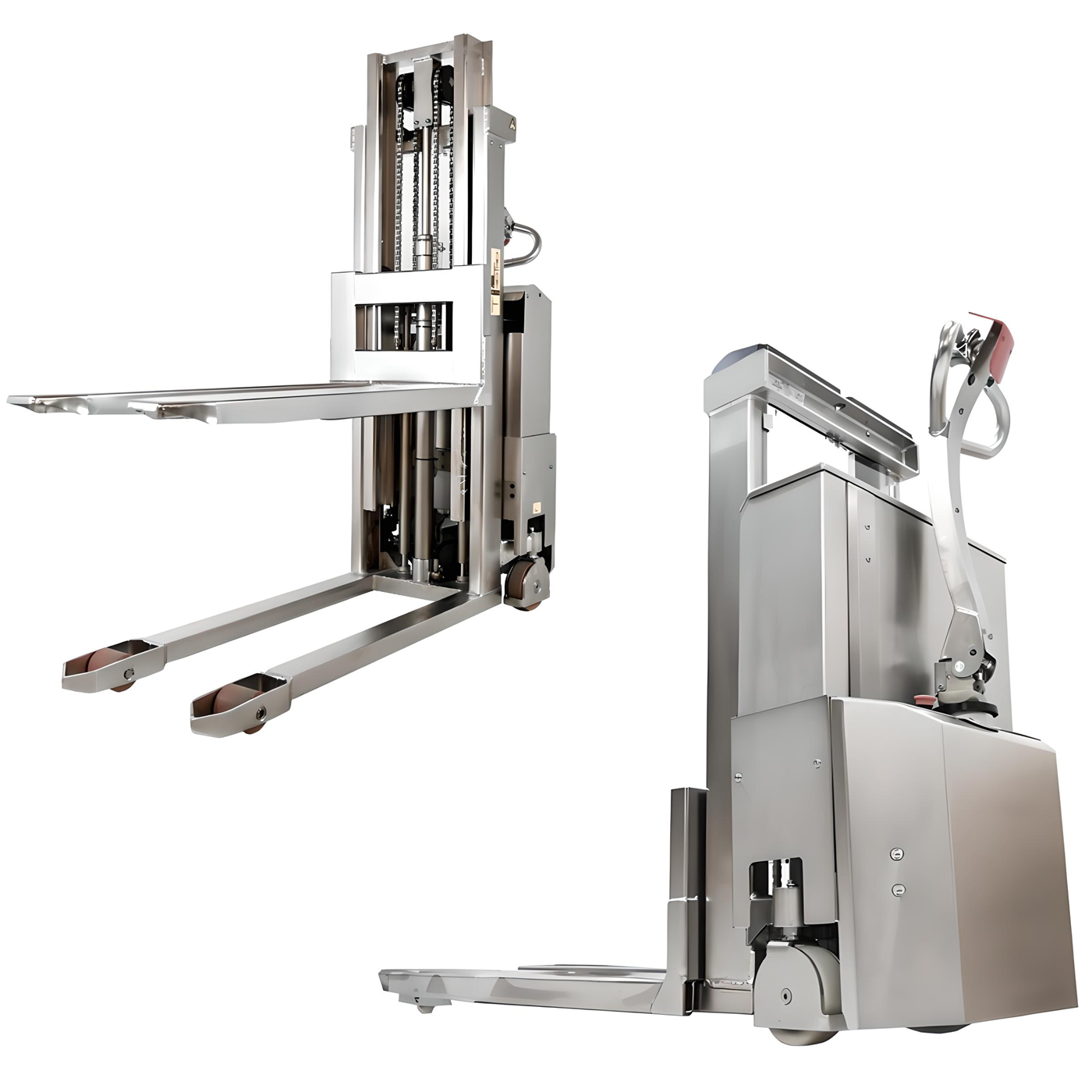

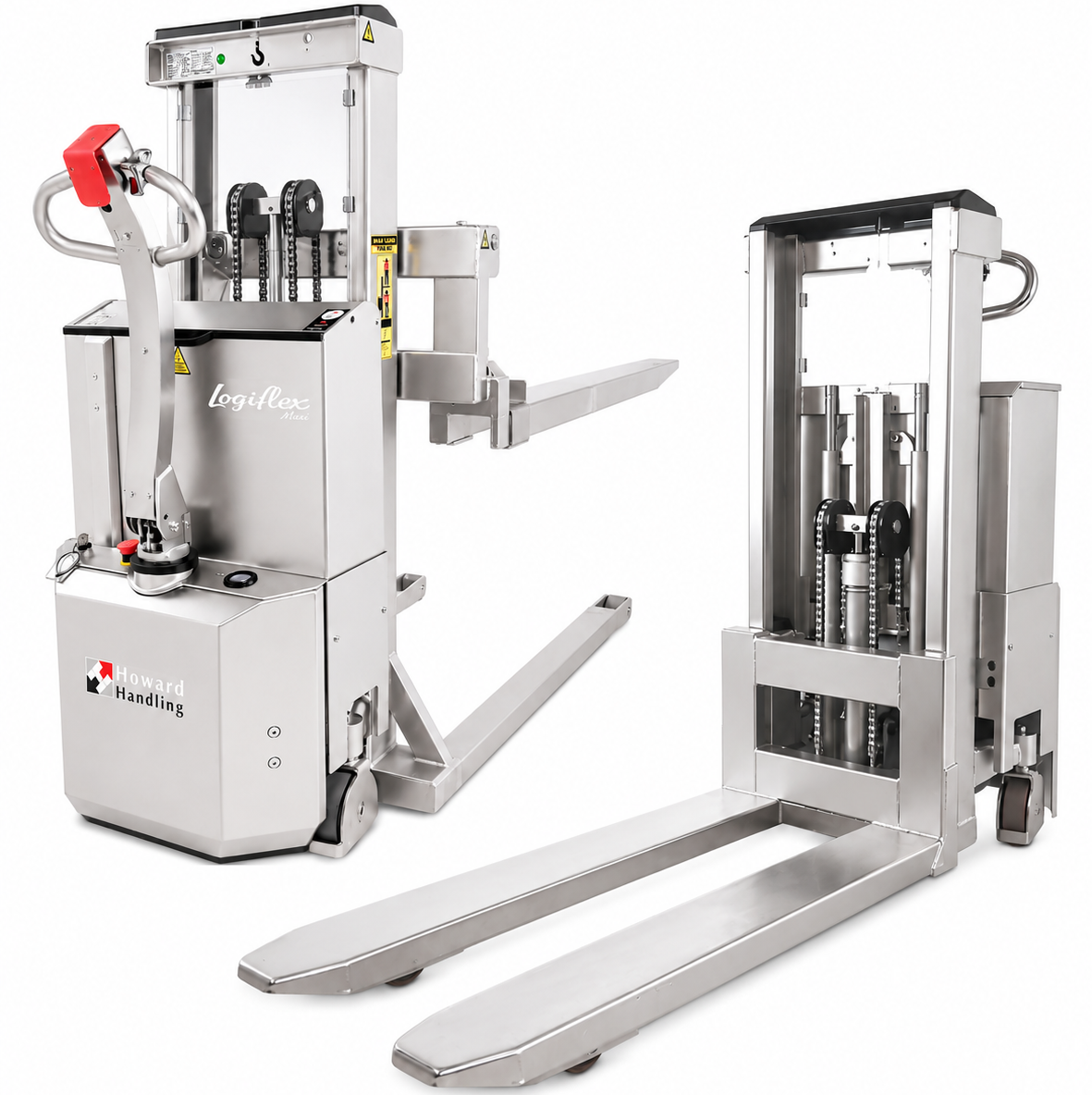

Logitrans SELF Inox, 1000kg
The SELF Inox fully powered stainless steel stacker from Danish manufacturer Logitrans, is designed for optimum hygienic handling of goods and to minimise the risk of bacterial contamination.
Logitrans has developed their stainless products for environments where strict hygiene is needed on the surfaces that are in direct contact with the goods being handled (e.g. food production and pharmaceutical).
Customise your SELF Inox: alternative fork spans, fork lengths and fork types are available for handling non standard pallets, IBCs, box pallets, crates, stillages and dolavs. The forks can also be replaced with other attachments (eg boom spear, crane arm) for handling non-palletised goods. Manual and semi electric stainless steel stacker trucks are also available: please contact us to discuss your requirements.
The design focuses on the safety and ergonomic working conditions of the user. High quality is ensured through an extended test programme and in co-operation with experts in health and safety.
Features:
- Acid-resistant and electric polished fork chassis, manufactured from AISI 316L stainless steel
- Electric lift, lower & drive
- Easy to clean and optimum resistance
- Transparent, impact-resistant safety screen on mast
- High polish pharma finish
- Closed forks for easy cleaning and few hiding places for bacteria
- Ergonomically correct handle ensures the operator a relaxed hold
- Optional: wireless remote control handset
- Optional: level control - the height of the pallet is automatically adjusted to optimum working height, as it is loaded/unloaded
- Also available with straddle legs, for handling closed pallets (with bottom runners)

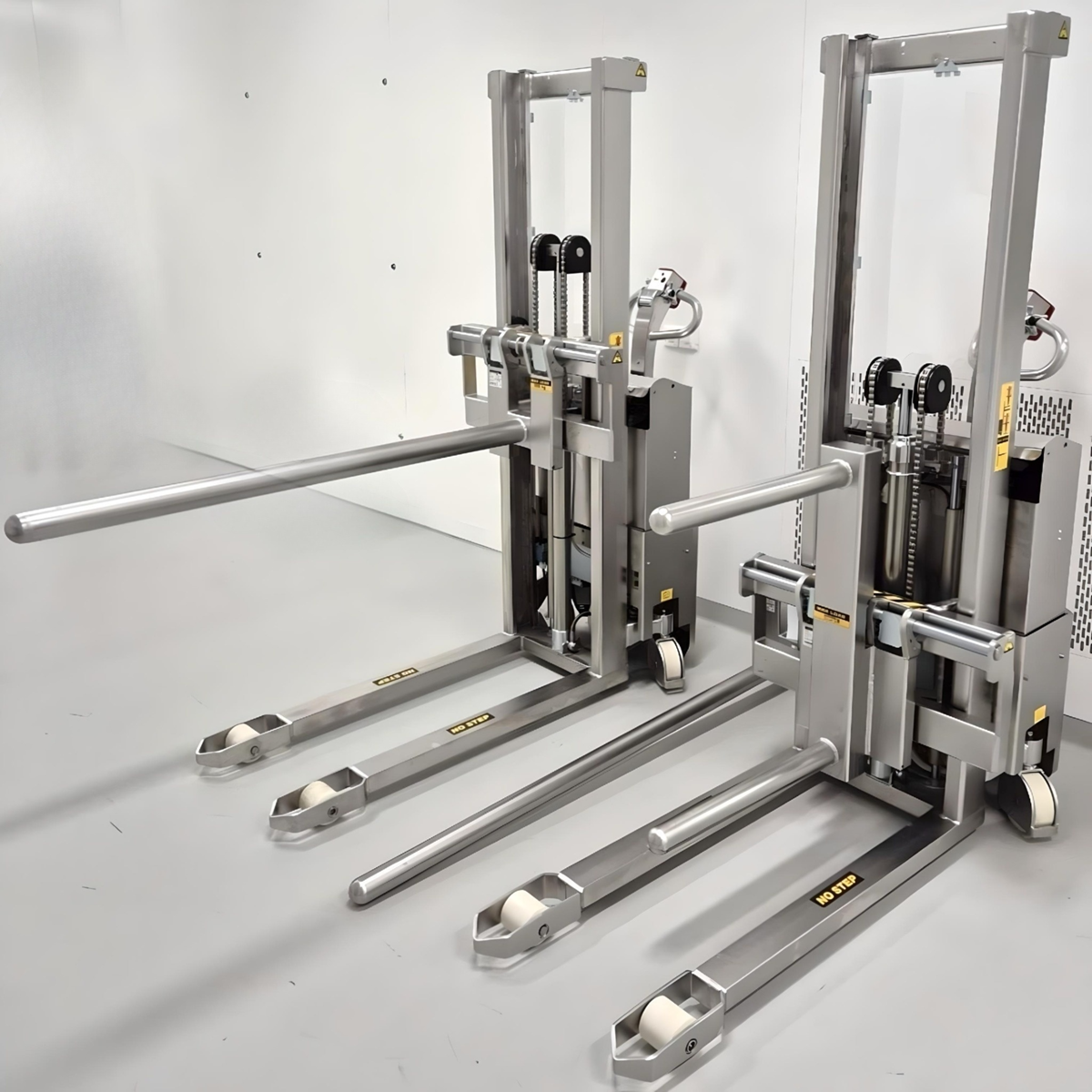

- Custom bespoke fork sizes and other attachments also available (eg platform table, crane arm drum turner)
- 2 year manufacturer's warranty
Technical Data |
Unit |
Info |
Model |
|
Logitrans SELF Inox |
Operator Type |
|
Pedestrian |
Lift Type |
|
Electric |
Load Capacity |
Kg |
1000 |
Dimensions |
Unit |
Info |
Lowered Height (Forks) |
mm |
90 |
Lift Height |
mm |
1200 - 2850* |
Fork Span |
mm |
560, 680 |
Fork Length |
mm |
1150 |
Individual Fork Width |
mm |
163 |
Load Centre |
mm |
max 600 |
Wheels |
Unit |
Info |
Fork Roller Material |
|
Vulkollan |
Drive Wheel Material |
|
Rubber |
Drive & Performance |
Unit |
Info |
Drive Motor Power (Kw) |
kw |
1.2 |
Battery Voltage/Capacity A/h |
V / A/h |
24 / 115 |
Battery Type |
|
Maintenance Free |
Charger Internal or External / Rating |
|
Internal 24V 15A - 230V |
Lift Motor Rating |
Kw |
1.2 |
* Load capacity reduced (see load diagram)
