Logitrans SELFRA Fully Powered Rotator with Adjustable Box Holders, 1000kg

From Danish manufacturer Logitrans, the SELFRA fully electric Rotator is a unique and customisable solution to lifting, turning and tipping boxes and crates. Different sized boxes with widths between 800mm and 1200mm can be handled and up to 1000kg can be lifted and turned. A choice of lift heights is available.

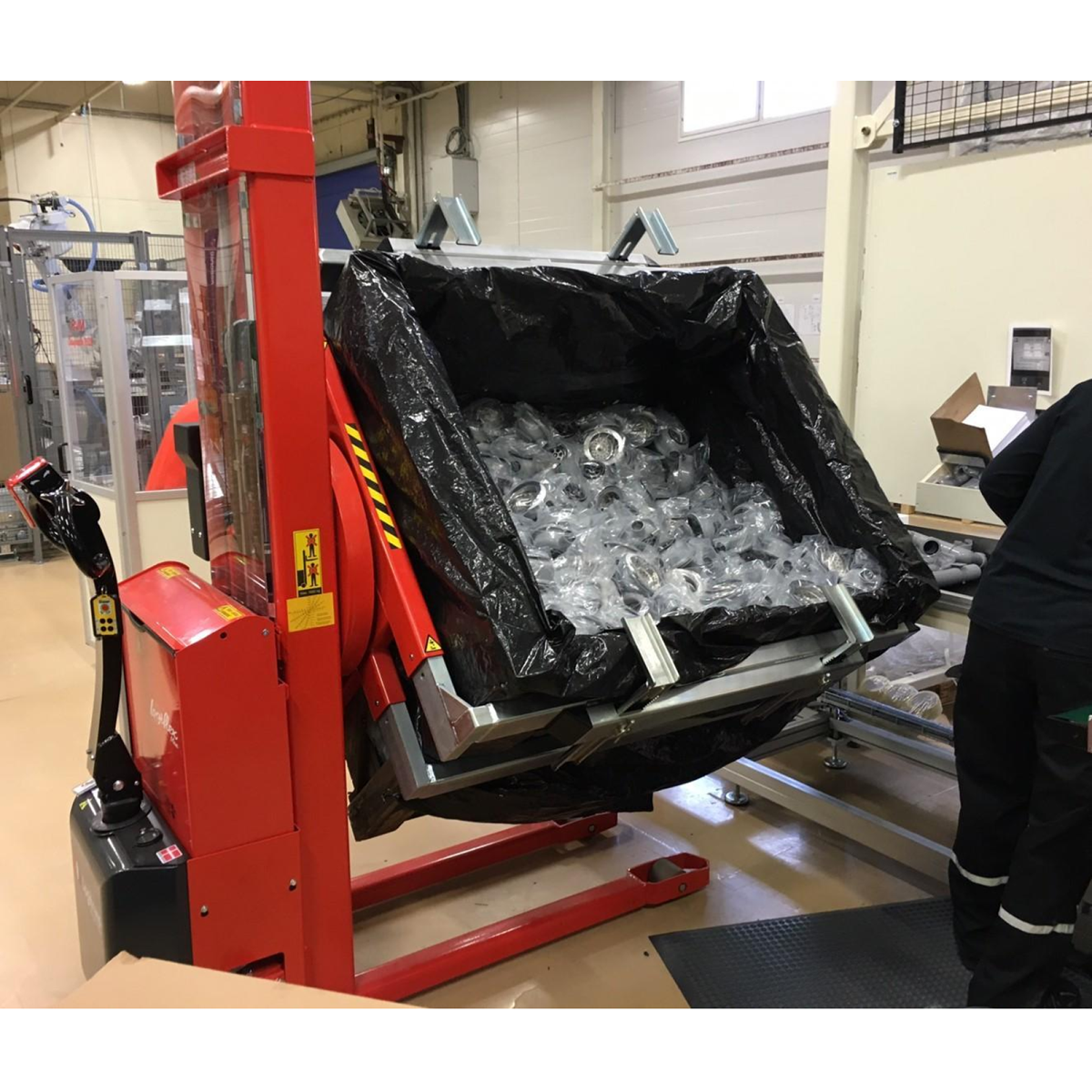

The Rotator's side tilting forks allow easy access to contents of boxes, crates, stillages and dolavs without stretching, bending and straining your back. It can rotate up to 180 degrees each way, so boxes can be tipped and completely emptied if required.

This particular model has electric lift/lower, rotate and drive - no operator effort is required. A semi powered Rotator with manual propulsion is also available. A stainless steel Rotator can be supplied for food and pharmaceutical applications in high care areas. In addition, a partly stainless steel Rotator with a stainless fork carriage, can be supplied. This is particularly useful in production areas where only parts in direct contact with the handled product must be stainless steel. Please contact us to discuss your application.

Optional box plates are available when turning cardboard boxes or containers with non rigid sides (watch video).

The SELFRA is suitable for handling open box pallets via sides where bottom runners are not present. If you are handling closed box pallets with bottom runners, then a straddle Rotator is also available.

Customise your Rotator: for non standard box & crate sizes, IBC tanks or other items, the Rotator can be supplied with custom bespoke fork types, fork widths and fork lengths. It can be built with a chute, to assist when emptying or pouring product (see video). It can also be supplied with a multi-purpose carriage and customised with special features, to lift and turn non palletised goods, such as Euro bins & tote bins. Please feel free to contact us to discuss your application.

Logitrans equipment is built to excellent European standards and is backed up with a 2 year manufacturer's warranty.

Features:

Key Features

Nothing to show

Logitrans SELFRA Fully Powered Rotator with Adjustable Box Holders, 1000kg

Technical Data
Unit
Info
Model
Logitrans SELFRA
Operator Type
Pedestrian
Lift Type
Electric
Load Capacity
Kg
1000*
Dimensions
Unit
Info
Lowered Height (Forks)
mm
90
Lift Height
mm
920 / 1200 / 1400 / 1600 / 1910
Fork Span
mm
560 / 680
Fork Length
mm
1250
Individual Fork Width
mm
163
Load Centre
mm
Fork Length / 2
Length without forks
mm
605
Wheels
Unit
Info
Fork Roller Material
Vulkollan
Drive Wheel Material
Vulkollan
Drive & Performance
Unit
Info
Drive Motor Power (Kw)
kw
1.2
Travel Speed, loaded/unloaded (Km/h)
Km/h
5 / 6 (below 500mm), 3 /4 (over 500mm)
Battery Voltage/Capacity A/h
V / A/h
24 / 115
Battery Type
Maintenance-Free
Charger Internal or External / Rating
Internal 24V 15A - 230V
Lift Motor Rating
Kw
1.1
Lift Speed with/without load
m/ s
0.07 / 0.12
Lowering Speed with/without load
m/ s
0.12 / 0.07

* maximum 1000kg when the load centre is maximum 80mm from the rotation centre. The load capacity is reduced, the larger the distance is between the load centre of the load and rotation centre

More Images

Scroll along the images to see more

Logitrans SELFRA

Fully Powered Rotator, 1000kg

  • Electric lift, rotate & propulsion; no operator effort required
  • Empty & fill boxes, crates, dolavs and stillages
  • 180 degree rotating forks - either way
  • Wrapover forks for handling open box pallets (without bottom runners)
  • 2 year warranty
