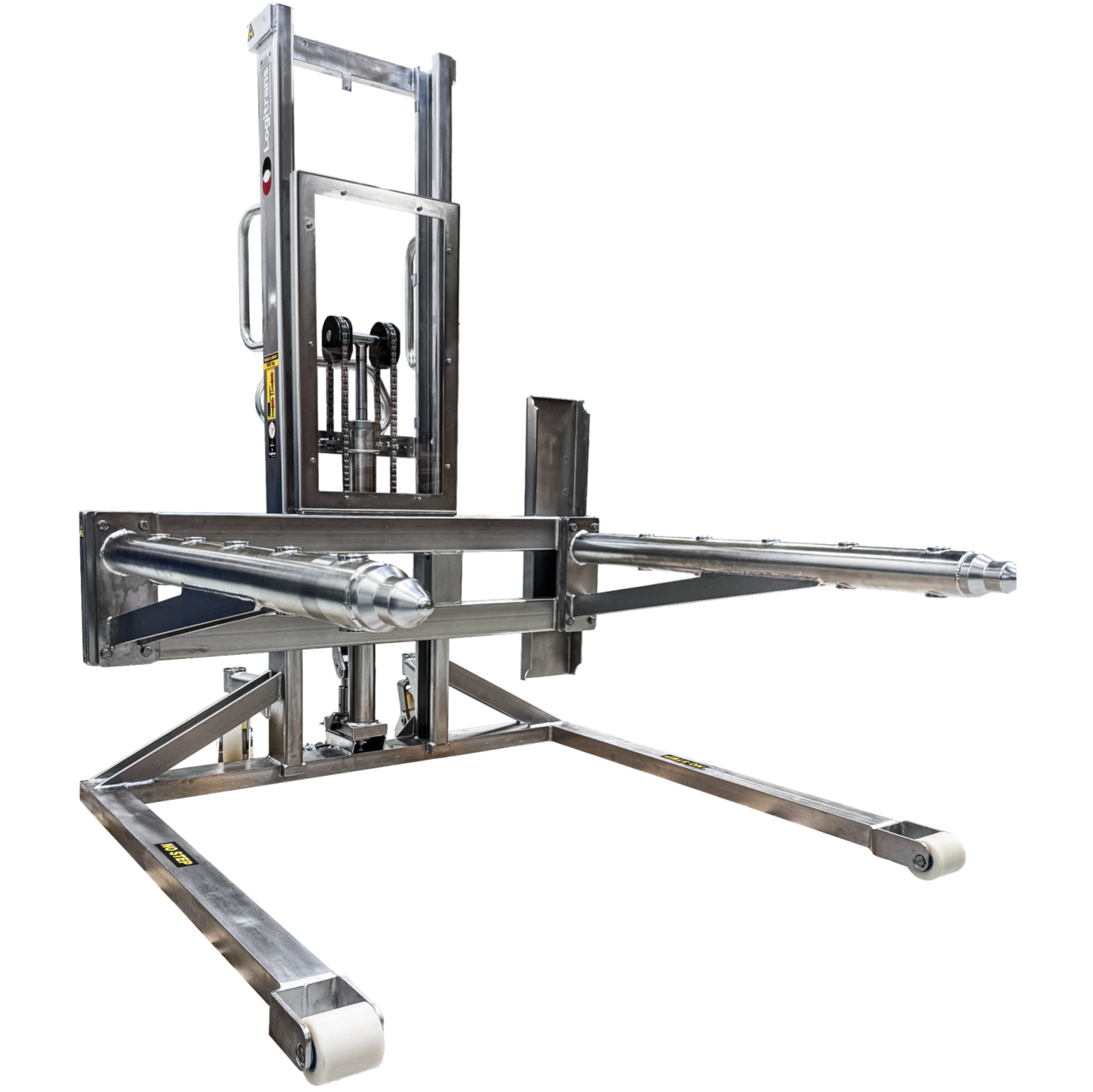

Logitrans HSS Inox
Stainless Steel Straddle Stacker Truck
- Exceptionally high quality stainless steel pallet stacker, Danish build
- Specifically designed for high hygiene environments (food & pharma)
- All surfaces in contact with goods are made from AISI316L stainless steel
- Manual lift and propulsion, with quick lift pump
- Adjustable fork width for lifting different pallet sizes
- 2 year warranty
- Contact us to discuss your requirement
Fork Size (mm) | Lift Height (mm) | Straddle Width (mm) |
Info | Availability | Net Price (GBP) |
Buy Now |
Logitrans HSS Inox, HSS1000 RF-Semi, 1000kg
The HSS Inox stainless steel straddle stacker from Danish manufacturer Logitrans is designed for optimum hygienic handling of goods and to minimise the risk of bacterial contamination.
Logitrans have developed their stainless products for environments where strict hygiene is needed on the surfaces that are in direct contact with the goods being handled (e.g. meat, fish and pharmaceutical).
Customise your HSS Inox: alternative fork spans, fork lengths and fork types are available for handling non standard pallet sizes, IBCs, box pallets, crates, stillages and dolavs. The forks can also be replaced with other attachments (eg boom spear, crane arm, drum forks & drum turner, platform table) for handling non palletised goods - or modified with bespoke features for handling other items, such as Euro bins & tote bins.
The design focuses on the safety and ergonomic working conditions of the user. High quality is ensured through an extended test programme and in co-operation with experts in health and safety.
Features:
- Acid-resistant and electric polished fork chassis, manufactured from AISI 316L stainless steel
- Manual lift & lower, lift heights from 1170mm - 2420mm
- Adjustable fork span, for handling many different pallet sizes
- Straddle support legs for handling both open and closed pallets (with and without bottom runners)
- Easy to clean and optimum resistance
- Parking brake and transparent, impact-resistant safety screen on mast
- Closed forks for easy cleaning and few hiding places for bacteria
- Ergonomically correct handle ensures the operator a relaxed hold
- Also available with wrapover support legs, for handling open pallets (without bottom runners)
- Also available with electric lift/lower
- ATEX explosion proof stacker truck also available, for use in hazardous zones with explosive atmospheres
- Custom bespoke fork sizes and other attachments also available (eg platform table, crane arm drum turner)
- 2 year manufacturer's warranty
Logitrans HSS Inox, HSS1000 RF-Semi, 1000kg
Technical Data | Info | |
---|---|---|
Model | HSS Inox | |
Operator Type | Pedestrian | |
Lift Type | Manual | |
Load Capacity | 1000 | |
Dimensions | Info | |
Lowered Height (Forks) | 65 | |
Lift Height | 1170 / 1370 / 1570 / 2020 / 2420 | |
Fork Span | Adjustable 350 - 800 | |
Fork Length | 1150 | |
Individual Fork Width | 163 | |
Load Centre | max 600 | |
Length without forks | 435 | |
Width between Straddle Legs | 435 - 1250 (not adjustable) | |
Aisle width (Euro Pallet: 800 x 1200) | 2215 | |
Wheels | Info | |
Fork Roller Material | White Nylon | |
Steering Wheel Material | White Nylon | |
Drive & Performance | Info | |
Lift Speed with/without load | normal/quick 17/54 per pump | |
Lowering Speed with/without load | 0.21 |
