Logitrans Logitilt LT-TES


Logitrans Logitilt LT-TES

Electric Crate Tilt, Straddle, 1000kg


  • Very high quality Tilt from Danish manufacturer Logitrans
  • Empty and fill boxes, crates, stillages, dolavs and box pallets without the need for bending and stretching
  • Adjustable straddle legs for handling closed and open-based containers
  • Adjustable height for both sitting and standing positions
  • Tilts to 90 degree angle
  • Different straddle sizes available - S, M, L & XL (850mm - 1422mm)
  • 2 year warranty

Fork Size
(mm)
Straddle Width
(mm)
Availability Net Price
(GBP)
Buy Now
560 x 800 1250 3-5 Weeks £ 5,120
560 x 1150 1250 3-5 Weeks £ 5,120
680 x 800 1250 3-5 Weeks £ 5,590
680 x 1150 1250 3-5 Weeks £ 5,590


Logitrans Logitilt LT-TES, 1000kg, Straddle Support Legs

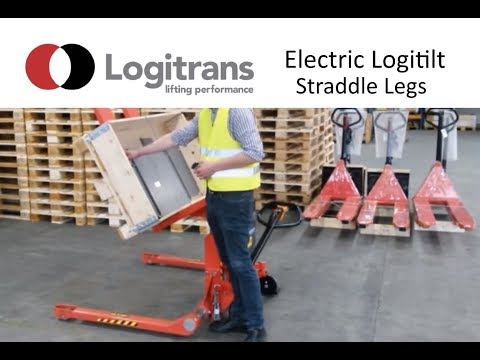

The Logitrans Logitilt lifts and tilts box pallets, crates, stillages and dolavs to a 90 degree angle, so the contents can be easily accessed. It prevents strain injuries associated with manual handling and repeated bending and stretching.

From Danish manufacturer Logitrans, this is a very high quality crate tilter, designed for production and packing areas in all industry sectors: including manufacturing, retail, warehousing and distribution. A stainless steel version is also available for food and pharmaceutical high care areas with high hygiene requirements.

Logitrans focus on safety and ergonomic working conditions for the user. The Logitilt can tilt a box or crate up to 90 degrees and the height can be adjusted for both sitting and standing working positions. The tilt angle can be set, so that the Logitilt automatically stops at the correct angle for the user.

The LT-TES has adjustable straddle support legs, to handle many different crate types and sizes - including both open and closed box pallets (with or without bottom runners).

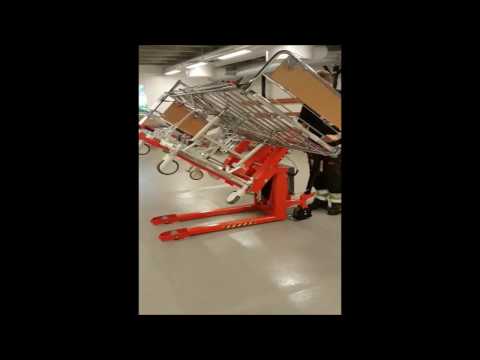

Customise your Logitilt: for non standard box and crate sizes, the Logitilt can be supplied with a custom bespoke fork width and fork length. It can also be customised with special features, for lifting & turning non-palletised items (eg hospital beds). Please feel free to contact us to discuss your application.

Very high quality standards are ensured through an extended test program. All Logitrans products are supplied with a 2 year manufacturer's warranty.

Features:

Please feel free to contact us for further information

Logitrans Logitilt LT-TES, 1000kg, Straddle Support Legs

Technical Data
Unit
Info
Model
Logitrans Logitilt LT-TES
Operator Type
Pedestrian
Lift Type
Electric
Load Capacity
Kg
1000
Net Weight (without battery)
Kg
251
Dimensions
Unit
Info
Lowered Height (Forks)
mm
85
Lift Height
mm
275
Fork Span
mm
560
Fork Length
mm
800 / 1150
Individual Fork Width
mm
163
Length without forks
mm
590
Width between Straddle Legs
mm
Adjustable: 850-942 / 942-1124 / 1124-1306
Height, Tilted
mm
Adjustable 750-950
Wheels
Unit
Info
Fork Roller Material
Nylon or Polyurethane
Steering Wheel Material
Nylon or Polyurethane
Drive & Performance
Unit
Info
Lift Motor Rating
Kw
0.8 12V
Lift Speed with/without load
m/ s
lift/tilt 4 / 14
Lowering Speed with/without load
m/ s
lift/tilt 3 / 11

 Logitilt Straddle LTES Logitrans
 Logitrans Logitilt LT-TE & LT-TES Key Features
