Logitrans Panther Maxi
Electric Pallet Truck, 1800kg
- High quality powered pallet truck from Danish manufacturer Logitrans
- AC technology with programmable Curtis controller
- Fork lengths from extra short 800mm to extra long 1500mm & 2000mm
- Fork widths from 450mm (printer pallets) to 680mm (Chep pallets)
- Customised special fork sizes and bespoke modifications also available
- 2 year warranty
Fork Size (mm) | Info | Availability | Net Price (GBP) |
Buy Now |
520 | Fork Length 810, 970mm | 3-5 Weeks | £ 5,058 | |
520 | Fork Length 915, 1066 | 3-5 Weeks | £ 5,058 | |
520 | Fork Length 1140mm | 1 Week | £ 4,930 | |
520 | Fork Length 1220mm | 3-5 Weeks | £ 5,080 | |
520 | Fork Length 1520mm | 3-5 Weeks | £ 5,251 | |
520 x 2000 | Capacity 1200kg | Please Call | £ 0 | |
680 | Fork Length 810, 970, 1140mm | 3-5 Weeks | £ 5,058 | |
680 | Fork Length 915, 1066 | 3-5 Weeks | £ 5,058 | |
680 | Fork Length 1220mm | 3-5 Weeks | £ 5,080 | |
680 | Fork Length 1520mm | 3-5 Weeks | £ 5,251 | |
680 x 2000 | Capacity 1200kg | Please Call | £ 0 | |
450 | Fork Length 810, 915, 970 | Please Call | £ 0 |

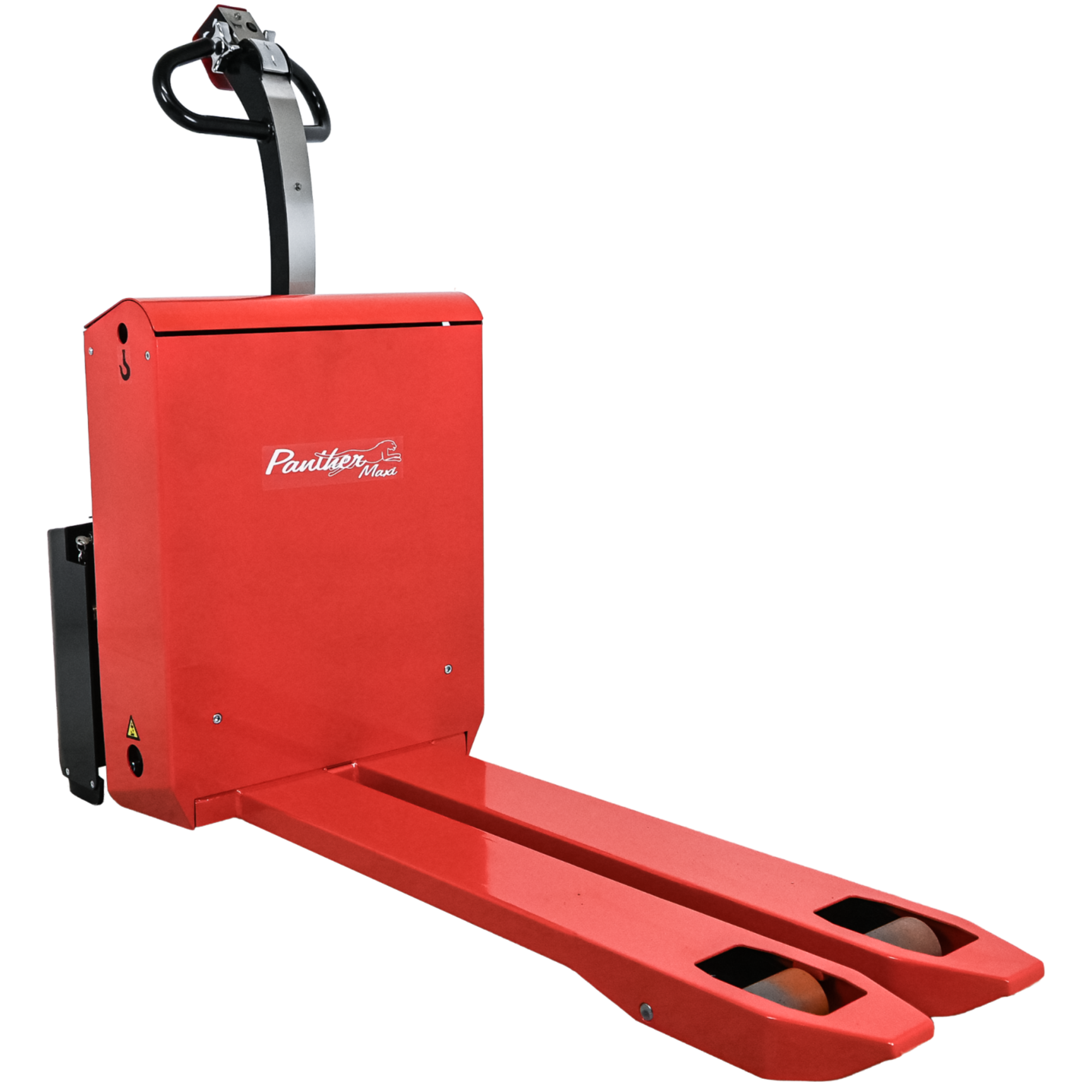

Logitrans Panther Maxi, Powered Pallet Truck, 1800kg
From Danish manufacturer Logitrans, this is an exceptional quality electric pallet truck with fully powered lift, lower and drive - no operator effort required.
With small dimensions (it is narrower than the width of a EUR pallet), and high quality components, the Panther Maxi moves pallets easily and quietly. It has an elegant design with rounded corners, so there is no damage to pallets, goods or surroundings.
Available with fork spans 450mm (for printers pallets), 520mm (Euro pallets) or 680mm (Chep pallets) and with fork lengths from 800mm to 2000mm*, Maxi has the flexibility to handle most pallet types.
The Panther Maxi has an AC motor and is fitted with a high quality programmable Curtis controller. The driving speed, acceleration and deceleration can be adjusted to the individual user.
Customise your Panther Maxi: for non standard pallet sizes, the Maxi can be built with special fork widths and lengths. It can also be modified with other custom bespoke features, to handle non palletised goods - or supplied with a special finish (eg a Maxi electric pallet truck with polymer or stainless steel finish). Please contact us to discuss your application.
Logitrans focus on the safety and ergonomic working conditions for the user. High quality is ensured through an extended test programme and in cooperation with experts in Health and Safety. All Logitrans equipment is backed up with a 2 year manufacturer's warranty.
An alternative Logitrans Mover is available for lighter pallet weights of up to 1500kg and light-medium duty pallet handling applications.
Used electric pallet trucks are also available.
* A fork length of 2000mm reduces the capacity of the truck to 1200kg
PERFORMANCE
- Capacity - 1800 kg (or 1200kg at fork length 2000mm)
- AC-technology (Curtis Controller)
- On-board internal charger and maintenance-free battery
- Long operating time per charge
- Easy setting of e.g. driving speed, acceleration and deceleration
- Soft acceleration
- Speed control
- Operates with the handle upright, for use in very tight spaces
DURABILITY
- No brushes in the wheel motor
- Easy maintenance
- Low maintenance costs
- Easy access to the components
- Excellent European manufacturing, with 2 year parts warranty
SAFETY
- Safety button can be activated in all positions
- Motor brake
- Central location of control buttons
- Ergonomicall correct handle
- Rounded corners
Logitrans Panther Maxi, Powered Pallet Truck, 1800kg
Technical Data | Info | |
---|---|---|
Model | Logitrans Panther Maxi | |
Operator Type | Pedestrian | |
Lift Type | Electric | |
Load Capacity | 1800 | |
Net Weight (including battery) | 205 (1150mm forks) | |
Dimensions | Info | |
Lowered Height (Forks) | 85 | |
Lift Height | 200 | |
Fork Span | 450 / 520 / 680 | |
Fork Length | 810 / 915 / 970 / 1140 / 1220 / 1520 | |
Individual Fork Width | 158 | |
Load Centre | Fork Length / 2 | |
Overall Width | 600 / 680 | |
Length without forks | 450 | |
Aisle width (Euro Pallet: 800 x 1200) | 1890 | |
Wheels | Info | |
Fork Roller Material | Vulkollan | |
Drive Wheel Material | Rubber | |
Drive & Performance | Info | |
Drive Motor Power (Kw) | 1.2 | |
Travel Speed, loaded/unloaded (Kmh) | 5 / 6 | |
Max Gradeability on slopes, loaded / unloaded | 10% (1500kg) | |
Battery Voltage/Capacity A/h | 24 / 115 | |
Battery Type | Maintenance-Free 2 | |
Charger Internal or External / Rating | Internal 24V 15A - 230V | |
Lift Motor Rating | 1.2 | |
Lift Speed with/without load | 35 / 50 | |
Lowering Speed with/without load | 115 / 40 |
