|Lift Height |
|1750||Manual Lift & Rotation||3-5 Weeks||£ 13,416|
|1750||Electric Lift/Manual Rotation||3-5 Weeks||£ 15,352|
|1750||Electric Lift & Rotation||3-5 Weeks||£ 17,960|
|1750||Full Power Drive & Rotation||3-5 Weeks||£ 23,422|

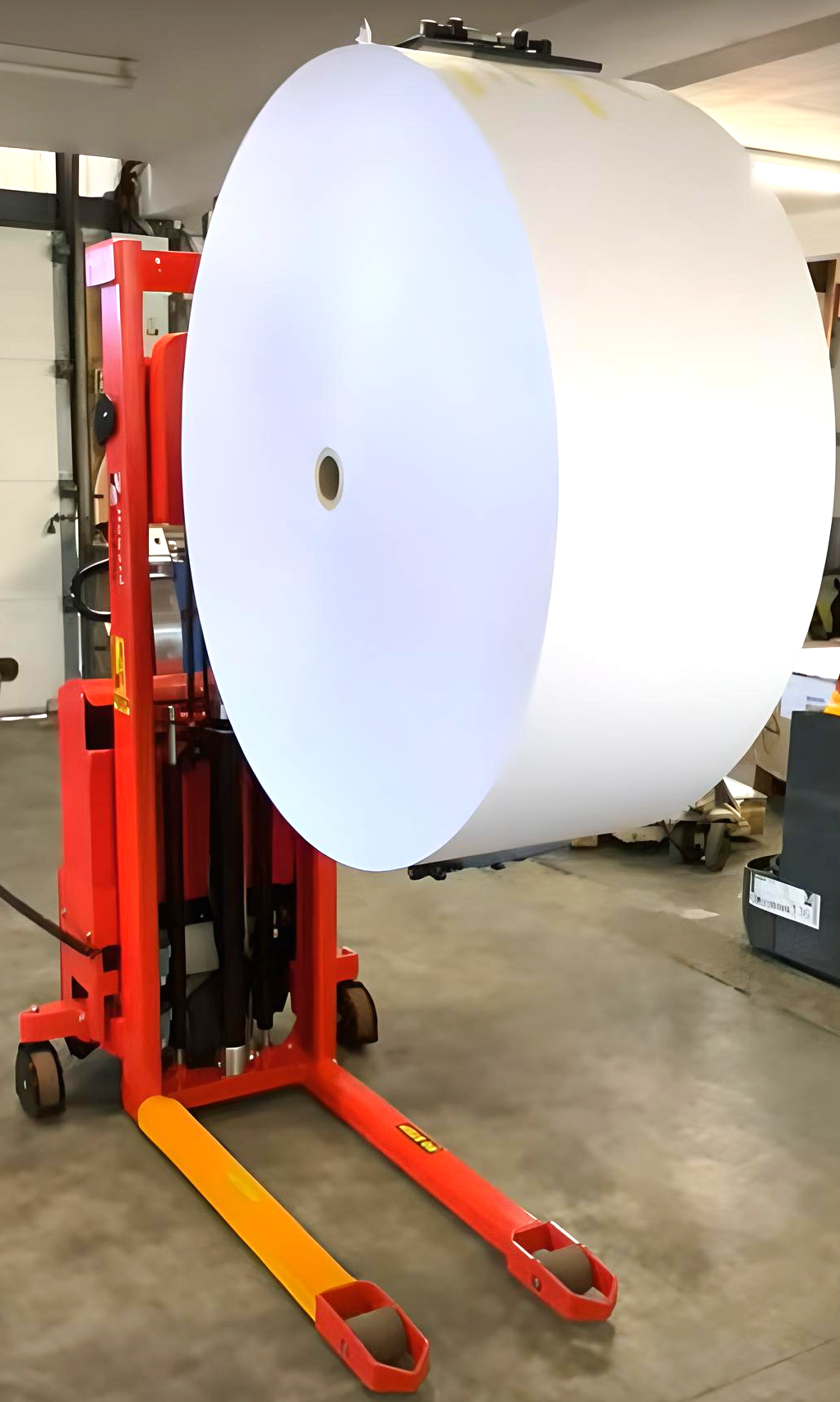

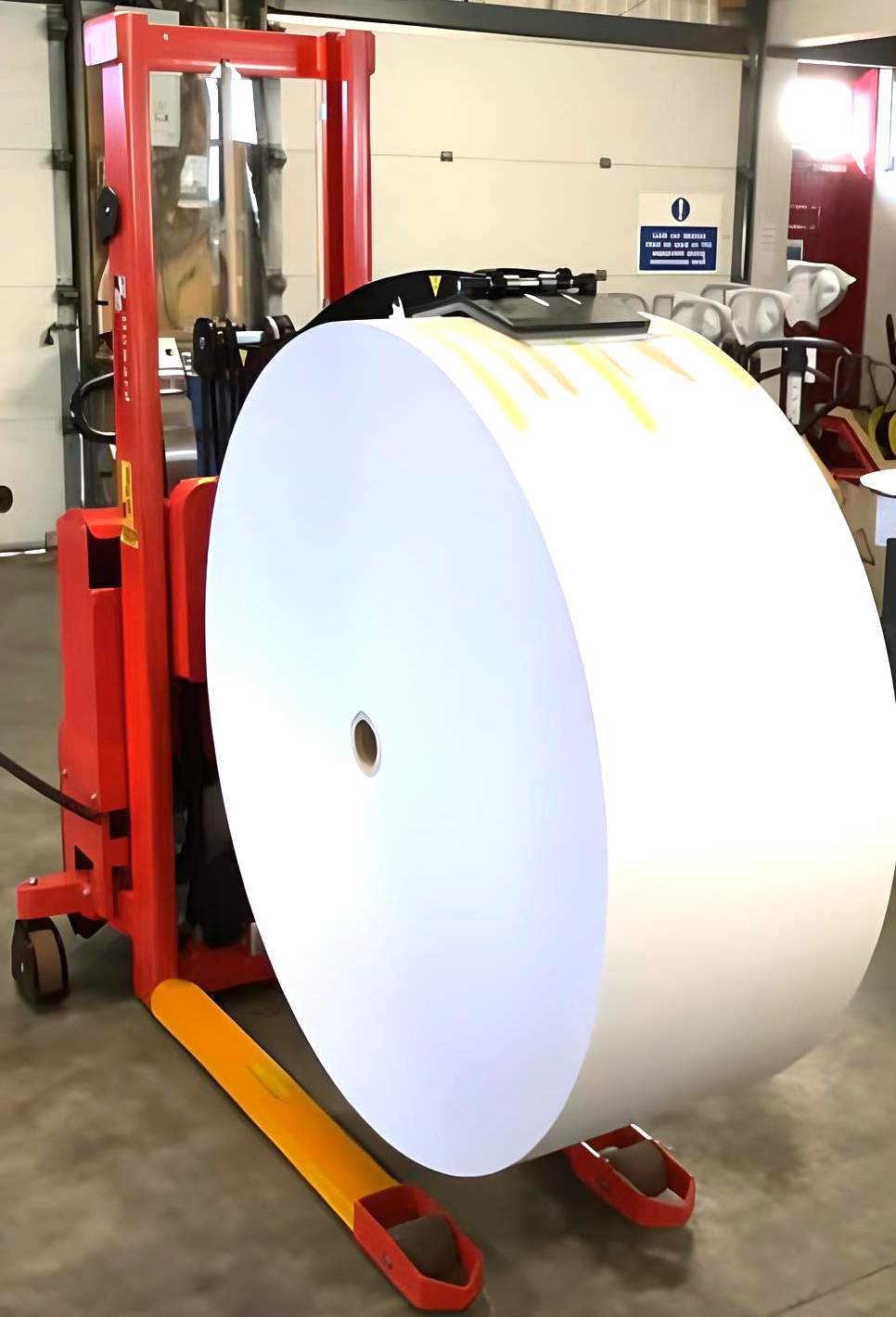

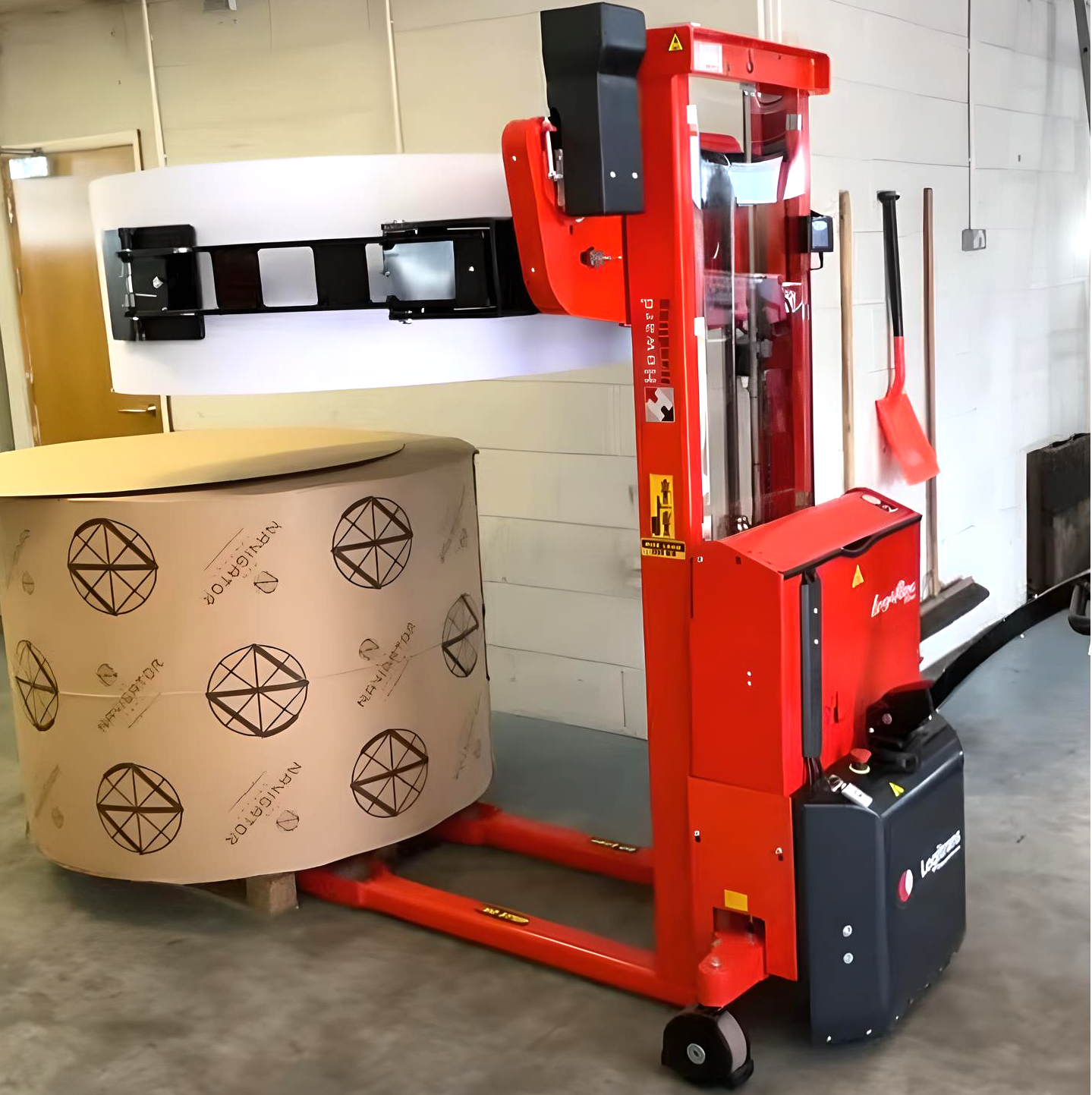

From Danish manufacturer Logitrans, the Reel Rotator lifts, turns and positions reels of different sizes, up to a max weight of 500kg. It can handle vertical reels (eye to the sky) placed on the floor or a pallet, in addition to vertical and horizontal reels that are off the floor. Reels can be lifted from a vertical position and turned horizontally, and vice versa.
The Reel Rotator is perfect for reel handling in printing and packing applications, whenever rolls are loaded onto machines. The Reel Rotator can pick up a reel from the floor or pallet, lift and turn it 90 degrees, then load it onto the printing or packaging machine.
Reel diameters from Ø120 mm to Ø1270 mm can be lifted and turned. The gripping arms are fitted with rubber pads to provide maximum hold, but a gentle grip: no damage to reels and very smooth reel surfaces can also be handled.
Customise your Reel Rotator: this handler can be supplied with custom bespoke features to allow other items to be lifted, transported and handled (eg crates). Please contact us to discuss your application.

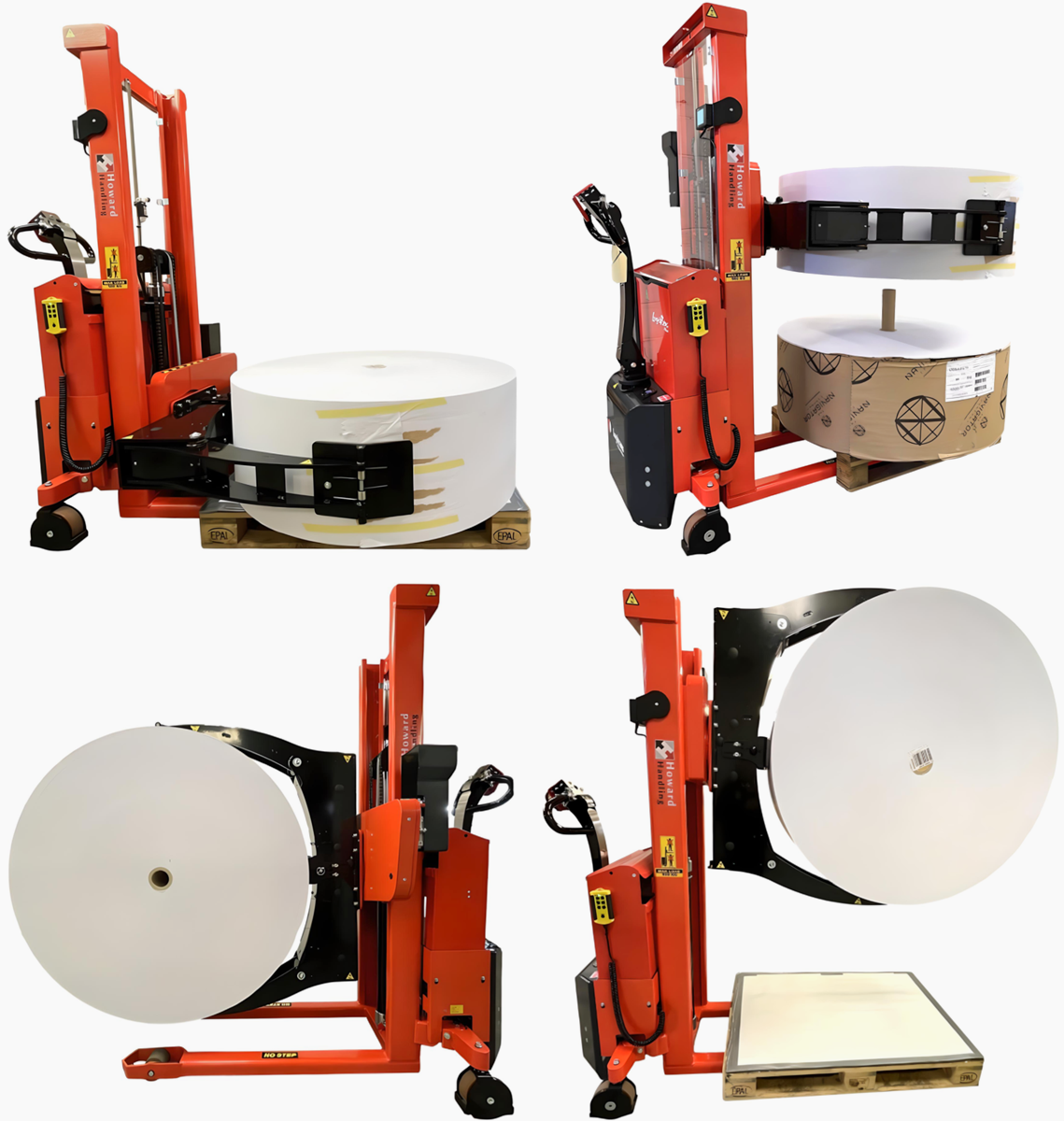

4 different Reel Rotator models are available, from fully manual (for light duty, occasional use) to fully powered (for medium-heavy duty use). On models with electric rotation, a touch screen digital controller is used to control the angle and speed of the required rotation.
LFRRM 1001: Fully Manual Reel Rotator
ELFRRM 1001: Semi Electric Reel Rotator
ELFRRE 1001: Electric lifting, fastening & rotation, manual propulsion
SELFRRE Maxi 1002: Fully powered lifting, fastening, rotation & drive (no operator effort required)
This Reel Rotator has wrapover support legs, and can lift reels from open pallets, via sides where bottom runners are not present. For rolls that are packed on closed pallets (with bottom runners) or for larger reels, a straddle Reel Rotator is also available.
All Logitrans equipment is built to excellent European standards and is backed up with a 2 year manufacturer's warrranty.
|Model||Logitrans LFRRM / ELFRRM / ELFRRE / SELFRRE|
|Lift Type||Manual / Electric|
|Lowered Height (Forks)||225|
|Overall Mast Height (Lowered / Lifted)||1930|
|Fork Roller Material||Nylon/Polyurethane (LFRRM/ELFRRM/ELFRRE) Vulkollan (SELFRRE)|
|Steering Wheel Material||Nylon or Polyurethane (LFRRM/ELFRRM/ELFRRE)|
|Drive Wheel Material||Vulkollan (SELFRRE)|
|Drive & Performance||Info|
|Drive Motor Power (Kw)||SELFRRE: 1.2|
|Travel Speed, loaded/unloaded (Km/h)||SELFRRE: 5 / 6 (below 500mm), 3 /4 (over 500mm)|
|Battery Voltage/Capacity A/h||12 / 119 (ELFRRM/ELFRRE) 24 / 115 (SELFRRE)|
|Battery Type||Maintenance Free|
|Charger Internal or External / Rating||Internal 12V - 230V (ELFRRM/ELFRRE) 24V 15A - 230V (SELFRRE)|
|Lift Motor Rating||1.1 (ELFRRM/ELFRRE), 1.2 (SELFRRE)|
|Lift Speed with/without load||8/26 per pump (LFRRM) 0.05 / 0.07 (ELFRRM/ELFRRE/SELFRRE)|
|Lowering Speed with/without load||0.05/0.07 (LFRRM) 0.12 / 0.07 (ELFRRM/ELFRRE/SELFRRE)|
|Over-all Width, Arms Min||1150|
|Over-all Width, Arms Max||1445|
|Reel Diameter||Adjustable 120 - 1270*|
* Three points clamping: 800mm -1270mm
