Transporter 2.0

Electric Pallet Truck, 2000kg

Ideal for light-medium duty handling of heavy loads
Large 2000kg capacity
Fully powered lift & drive: no operator effort
48V motor can handle ramps & slopes
Small dimensions and creep speed for confined spaces
1 year warranty

Fork Size (mm)	Lift Height (mm)	Availability	Net Price (GBP)	Buy Now
560 x 1150	190	1 Week	£ 1,995	Buy Now

Description

Features

Technical

Gallery

Brochures

Description

Features

Technical

Gallery

Video

Brochures

Transporter 2.0 Powered Pallet Truck, 2000kg

PRODUCT

The Transporter 2.0 is an ideal electric pallet truck for light to medium-duty applications involving heavy loads.

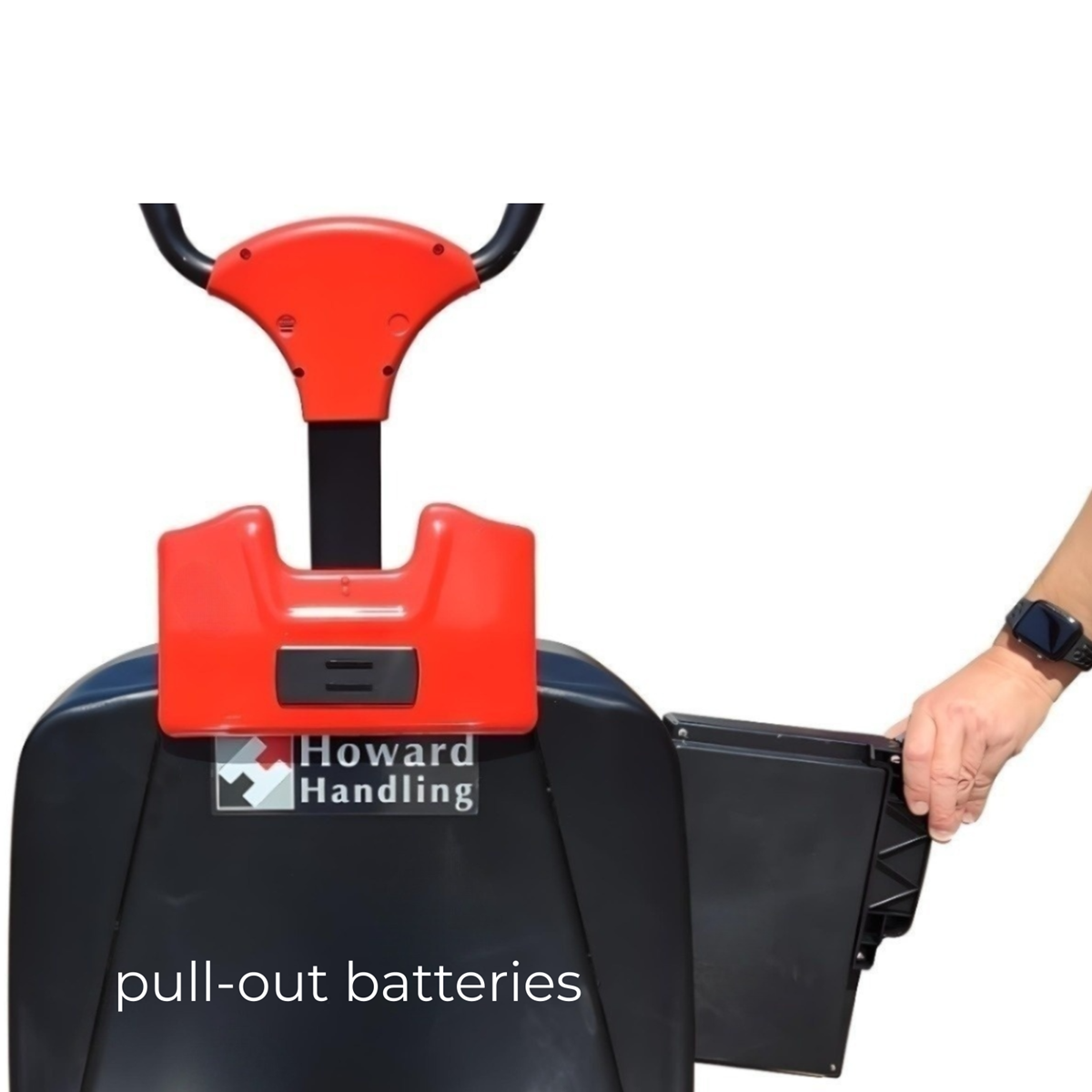

It is powered by two 24V pull-out batteries, giving a combined 48V of power. The lithium-ion batteries give an average 3 hours of continuous use per charge, and have a fast recharge time of only 4 hours. Supplied with two external chargers, these batteries can be opportunity charged whenever the truck is not in use. Alternatively and for busy applications, discharged batteries can be easily replaced with a spare set of batteries, to extend the working time.

With ample power and a low unladen weight of only 140kg, the Transporter 2.0 is perfect for tasks involving ramps and slopes. On inclines, it has a gradeability range of 8% to 16% (fully loaded/unloaded). Creep (turtle) speed enables slow, precise movement of pallets in confined spaces. Optional support castors are also available for movements involving wider loads.

APPLICATION

The Transporter 2.0 is suitable for most heavy pallet handling tasks requiring light to medium use. Its compact dimensions and low unladen weight make it especially useful in small, confined and weight-restricted areas such as narrow corridors, lifts and ramps. With all-electric lift, lower, and drive functions, no operator effort is needed to move pallets weighing up to 2 tons.

For heavier duty applications, an alternative Mini Mover, E-Truck 2000, or E-Truck HD is available.

FEATURES

Large 2000kg load capacity
Very low service weight of 140kg
Fully powered lift, lower & drive
Creep (turtle) speed and small dimensions for confined spaces
2 x pull-out lithium-ion batteries
High quality programmable controller
Optional support castor wheels for increased side stability
LCD battery display indicator
Controls positioned for use with either hand
1 year warranty
Also available with smaller 1500kg capacity.

Replacing a hand pallet truck with an electric pallet truck eliminates operator pushing and pulling of heavy loads. It prevents staff injuries and sickness associated with manual handling. The Transporter Li-ion comes with an electromagnetic braking system, for greater safety when working on ramps, slopes and inclines.

Technical Data	Unit	Info
Model		Transporter 2.0
Operator Type		Pedestrian
Lift Type		Electric
Load Capacity	Kg	2000
Net Weight (without battery)	Kg	130
Net Weight (including battery)	Kg	140
Dimensions	Unit	Info
Lowered Height (Forks)	mm	85
Lift Height	mm	190
Fork Span	mm	560
Fork Length	mm	1150
Individual Fork Width	mm	150
Overall Width	mm	590
Overall Length	mm	1550
Aisle width (Euro Pallet: 800 x 1200)	mm	2025
Aisle width (UK Pallet: 1000 x 1200)	mm	2160
Ground Clearance	mm	30
Wheels	Unit	Info
Fork Roller Material		Polyurethane
Drive Wheel Material		Polyurethane
Drive & Performance	Unit	Info
Drive Motor Power (Kw)	kw	0.9
Travel Speed, loaded/unloaded (Km/h)	Km/h	4.5 / 5
Max Gradeability on slopes, loaded / unloaded	%	8 / 16
Battery Voltage/Capacity A/h	V / A/h	48 / 20
Battery Type		Maintenance Free Lithium
Charger Internal or External / Rating		External, 2 x 24V/5A
Lift Motor Rating	Kw	0.7
Lift Speed with/without load	m/ s	0.016 / 0.020
