Logitrans Logiflex QCA Jib Crane Lifter, Straddle Support Legs, 500kg

For the ultimate flexible multi-tasker, look no further than the Logiflex from Danish manufacturer Logitrans. Available in manualsemi-electric and fully powered versions, with one truck you can move heavy parts & machinery, transport a pallet, lift a reel and turn a drum. High flexibility and efficiency - this stacker can transport, lift and handle many types of goods.

With adjustable straddle support legs, the standard QCA crane arm lifts and transports heavy objects of up to 500kg. Machine tools, plastics moulds and components can all be handled with ease. The crane arm attachment can be easily detached and replaced with other Logitrans attachments (eg forks, platform table, reel spear, drum turner) for multi tasking.

As an option, a crane arm with an adjustable length can be supplied. The TC750 crane arm can be adjusted from 750mm to 1600mm. It has a maximum load capacity of 750kg at 750mm, reducing to 200kg at maximum 1600mm length.

The Logiflex is perfect for manufacturing, production and warehouse packing areas, as well as shops and offices. Many different tasks can be performed with one machine. A stainless steel version is available for high care areas in food production, chemical and pharmaceutical industries.

For fragile, or expensive goods that require careful handling, an optional low speed valve will lift and lower goods slowly and carefully, preventing them from being damaged by sudden stops and starts (see video).

Customise your Logiflex: the Logiflex stacker truck and the crane attachment can be customised with special sizes and other bespoke features, to suit your specific handling application. Please feel free to contact us to discuss your requirement.

Logitrans put their focus on the safety and ergonomic working conditions of the user. The Logiflex can be adjusted to the individual user, and a transparent, impact resistant safety screen gives the operator optimum view conditions. No damage to surroundings and reels: Logiflex has an elegant design with rounded corners.

Built to excellent European standards, all Logitrans equipment is backed up with a 2 year parts warranty.

3 models are available:

Features:

Key Features

Nothing to show

Logitrans Logiflex Jib Crane Lifter, Straddle Support Legs, 500kg

Technical Data
Unit
Info
Model
Logitrans Logiflex
Operator Type
Pedestrian
Lift Type
Manual / Electric
Load Capacity
Kg
500 (crane arm), 1000 (stacker truck)
Dimensions
Unit
Info
Lift Height
mm
890 / 1620 / 1880 / 2020 / 2420 / 2820 / 3270
Load Centre
mm
(see spec sheet)
Width between Straddle Legs
mm
Adjustable: 850-942 / 942-1124 / 1124-1306 / 1240-1422
Wheels
Unit
Info
Fork Roller Material
Nylon or Polyurethane (LFS Mini / ELFS), Vulkollan (SELFS)
Steering Wheel Material
Nylon or Polyurethane (LFS Mini / ELFS)
Drive Wheel Material
Vulkollan (SELFS)
Drive & Performance
Unit
Info
Drive Motor Power (Kw)
kw
0.7 (SELFS Mini)
Travel Speed, loaded/unloaded (Km/h)
Km/h
5.2 / 5.5 (SELFS Mini)
Battery Voltage/Capacity A/h
V / A/h
12 / 119 (ELFS), 24 / 84 (SELFS)
Battery Type
12V Maintenance Free (ELFS) / 24V Maintenance Free (SELFS)
Charger Internal or External / Rating
Internal 12V - 230V (ELFS) / 24V 15A - 230V (SELFS)
Lift Motor Rating
Kw
1.1 (ELFS), 1.2 (SELFS)
Lift Speed with/without load
m/ s
0.05 / 0.07 (ELFS), 0.07 / 0.12 (SELFS)
Lowering Speed with/without load
m/ s
0.12 / 0.04 (ELFS), 0.12 / 0.07 (SELFS)

More Images

Scroll along the images to see more

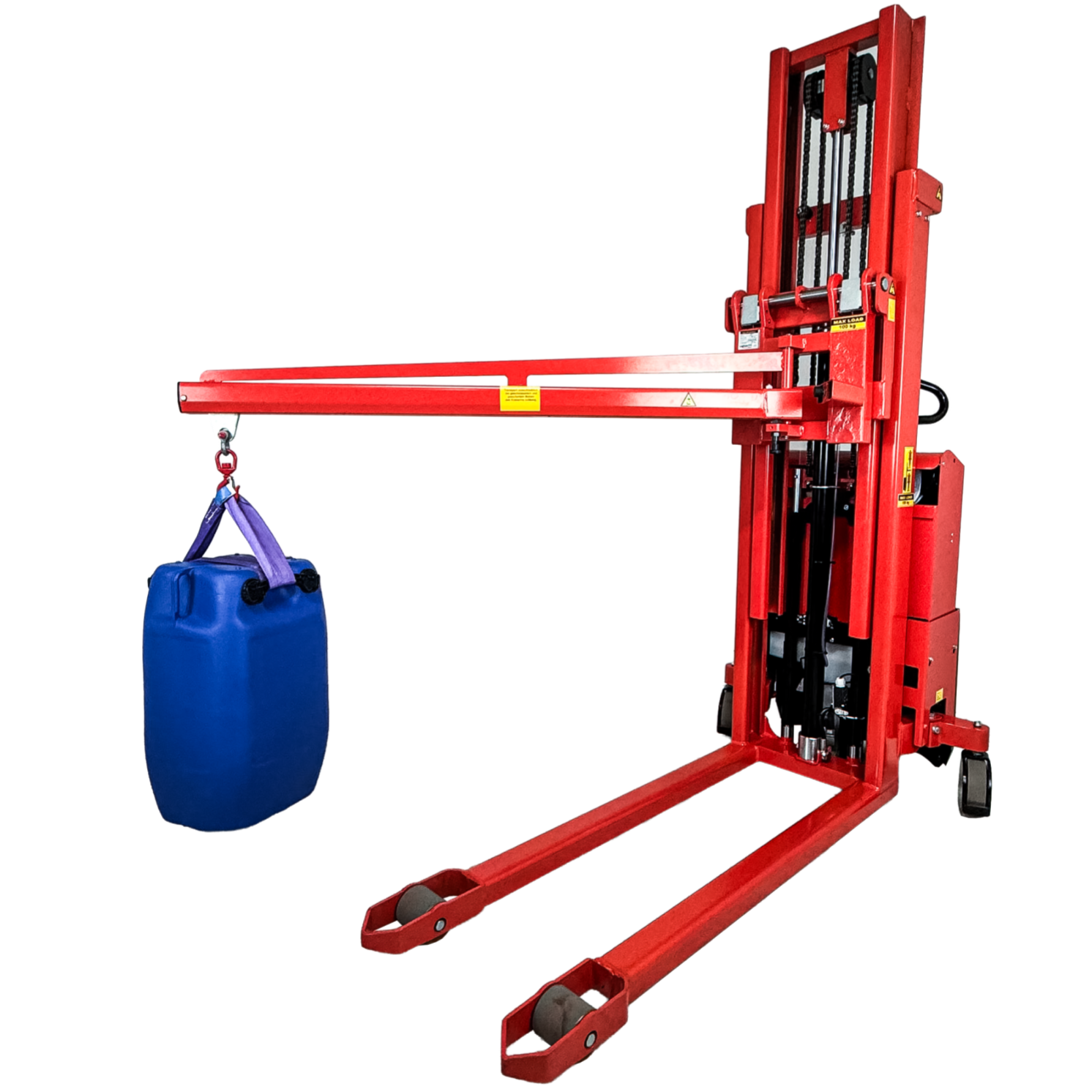

Jib Crane Lifter

Stacker Truck with Jib Crane Arm

  • Manual, semi electric or fully powered versions
  • Adjustable chain length handles different load sizes
  • Optional: adjustable crane arm length
  • Adjustable straddle leg width
  • Removable crane arm can be replaced with other attachments (eg forks), for multi-tasking
  • Other sizes and lift heights also available
  • 2 year warranty
