Logitrans HL Inox Plus, HLIP, Stainless Steel, 1500kg

The HL Inox Plus stainless steel High Lifter from Danish manufacturer Logitrans, is designed for optimum hygienic handling of goods. This stainless steel scissor lift is designed for high care production and packing applications, where hygiene is essential. It lifts open pallets (without bottom runners) to a correct working height for loading or unloading.

Loads of up to 1500kg can be transported and lifted up to 470mm. From 470mm, the lifting capacity is 1000kg.

Logitrans has developed the HL Inox Plus for environments where strict hygiene is needed (eg food production and pharmaceutical). It also provides very high protection against corrosion in wet environments, or in applications where salt or harsh chemicals are present - all essential parts are manufactured from stainless steel. If your application requires stainless steel surfaces only where product is in direct contact with them, then an alternative HL Inox is also available.

The design focuses on the safety and ergonomic working conditions of the user. High quality is ensured through an extended test programme and in co-operation with experts in health and safety.

Suitable for lifting open sided pallets, where no bottom runners are present. A stainless straddle pallet lifter is available for Chep pallets with bottom runners.

Features:

Key Features

Nothing to show

Logitrans HL Inox Plus, HLIP, 1500kg

Technical Data
Unit
Info
Model
HL1004 Inox Plus
Operator Type
Pedestrian
Lift Type
Manual
Load Capacity
Kg
1500
Net Weight (without battery)
Kg
125
Dimensions
Unit
Info
Lowered Height (Forks)
mm
90
Lift Height
mm
800
Fork Span
mm
540, 680
Fork Length
mm
1200
Individual Fork Width
mm
163
Overall Length
mm
1580
Length without forks
mm
340
Aisle width (Euro Pallet: 800 x 1200)
mm
1830
Wheels
Unit
Info
Fork Roller Material
White Nylon, Tandem
Steering Wheel Material
White Nylon
Drive & Performance
Unit
Info
Lift Speed with/without load
m/ s
normal/quick 10/35 per pump
Lowering Speed with/without load
m/ s
0.093

More Images

Scroll along the images to see more

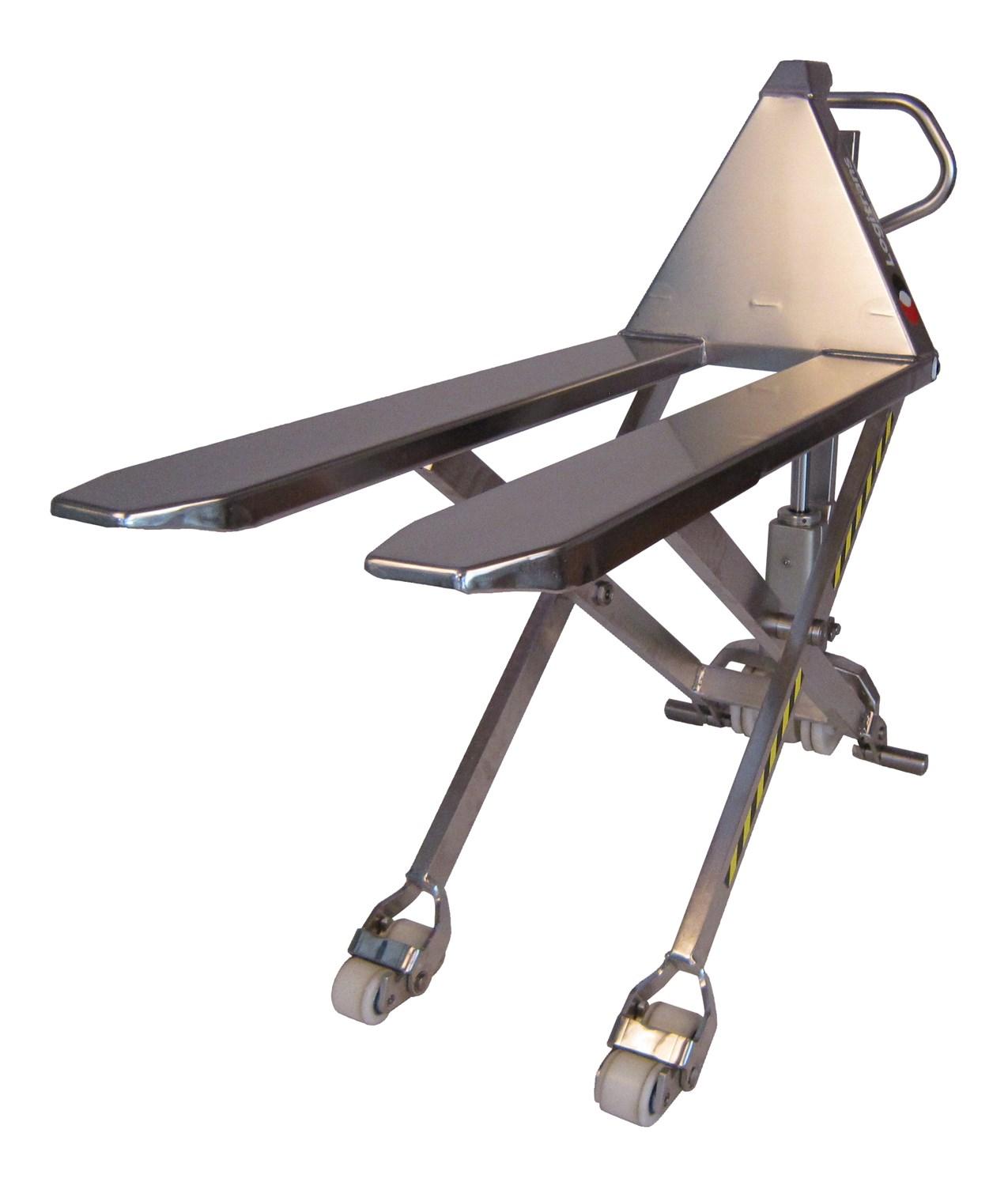

Logitrans HL Inox Plus

Stainless Steel Plus Manual Scissor Lift

  • All essential parts are made from AISI316L stainless steel
  • Designed for food and pharmaceutical industries, in areas where hygiene is essential
  • Able to withstand wet and aggressive environments
  • Quick lift pump fitted as standard
  • 2 year warranty
