Logitrans Reel Lifter
<< Back to Reels & Drums

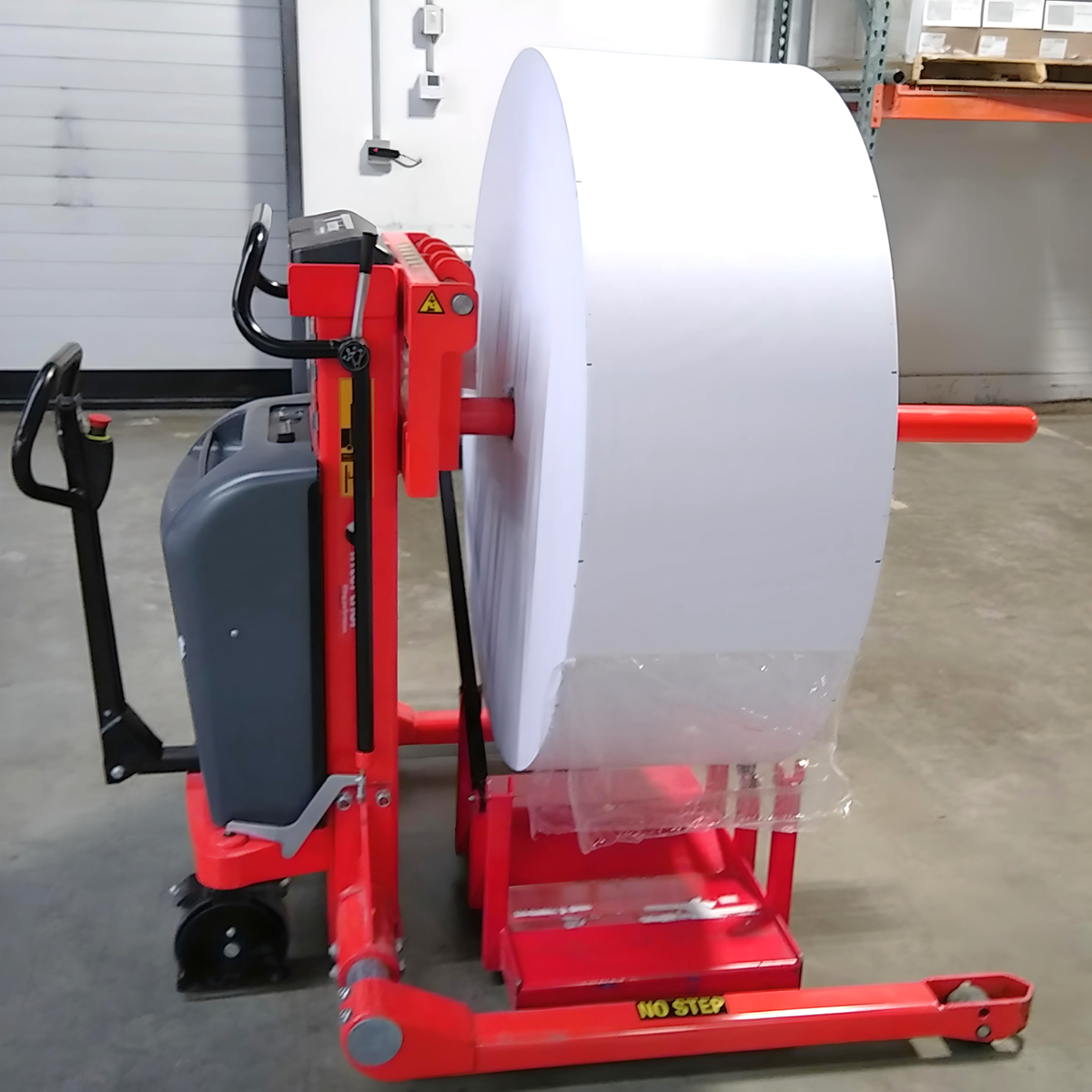

Logitrans Reel Lifter

Stacker Truck with Boom Spear


  • Lifts reels through their core
  • Manual, semi electric or fully powered reel lifters available
  • Choice of spear lengths, lift capacities & lift heights
  • Boom spear can be removed and replaced with other attachments (eg forks), for multi-tasking
  • Can be customised for special reel handling applications
  • 2 year warranty

Lift Height
(mm)
Straddle Width
(mm)
Info Availability Net Price
(GBP)
Buy Now
1620 1250 LFS Mini (Manual) 3-5 Weeks £ 3,515
1880 1250 ELFS1001 (Semi Powered Lift) 3-5 Weeks £ 5,150
1620 1250 SELFS Mini (Fully Powered) 3-5 Weeks £ 6,545

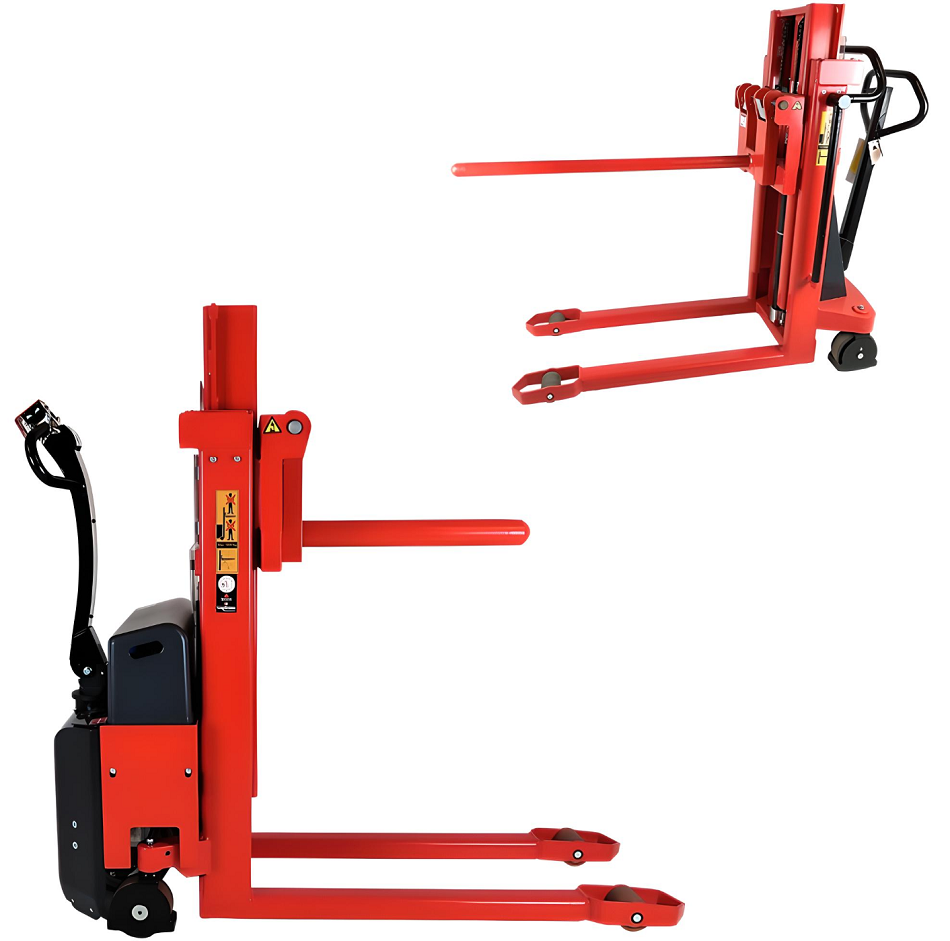

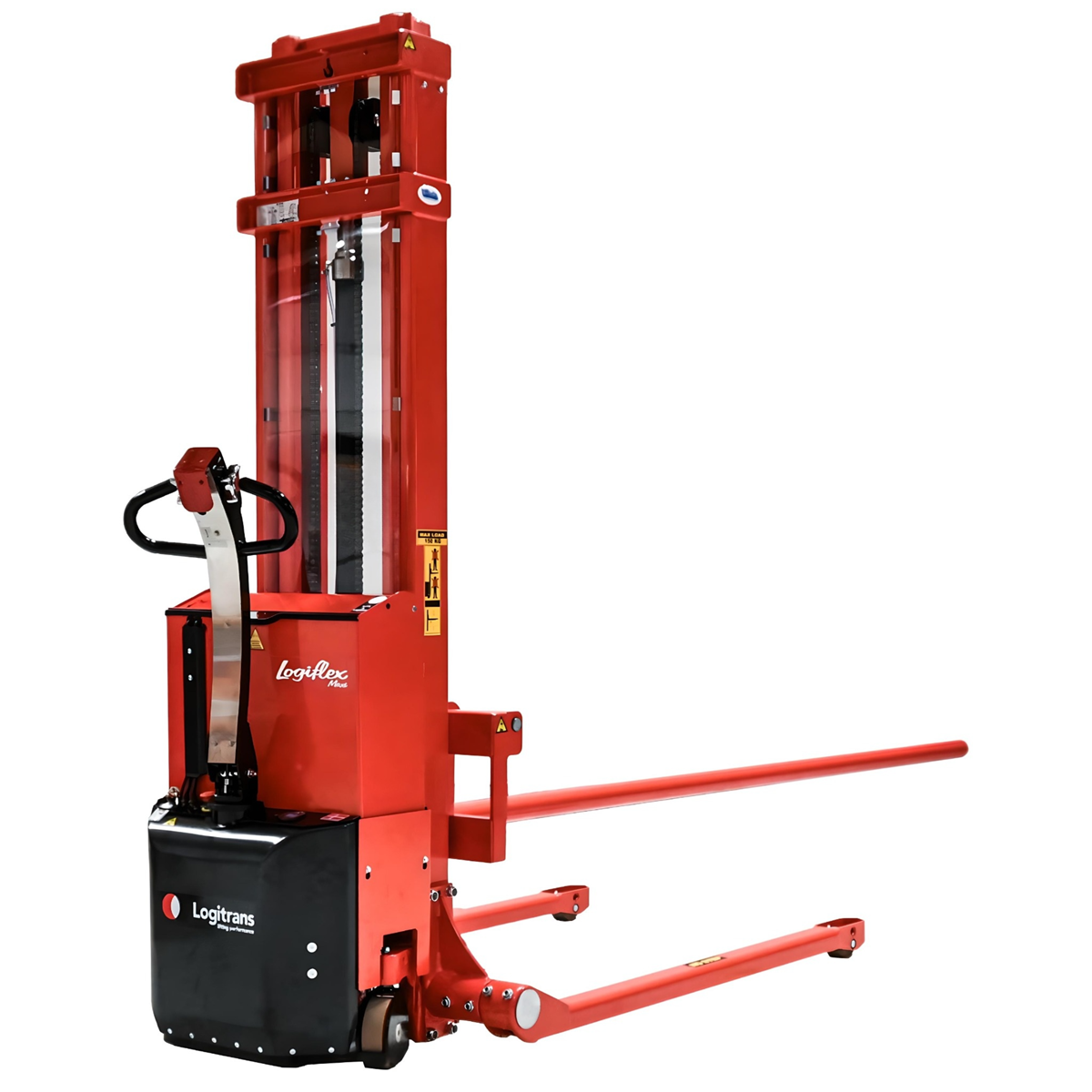

Logitrans Logiflex Reel Lifter, Straddle Support Legs

For the ultimate flexible multi-tasker, look no further than the Logiflex from Danish manufacturer Logitrans. Available in manual, semi-electric and fully powered versions, with one truck you can lift a reel, transport a pallet, turn a drum and move a heavy machine. High flexibility and efficiency - this stacker can transport, lift and handle many types of goods.

Built to excellent European standards, all Logitrans equipment is backed up with a 2 year parts warranty.

Customise your Logiflex: alternative boom spear lengths, lift capacities and lift heights are available. The spear can be easily detached and replaced with other attachments (eg forks, crane arm, drum turner, platform table) for multi-tasking. The stacker can also be customised with special features, for non standard reel handling applications.

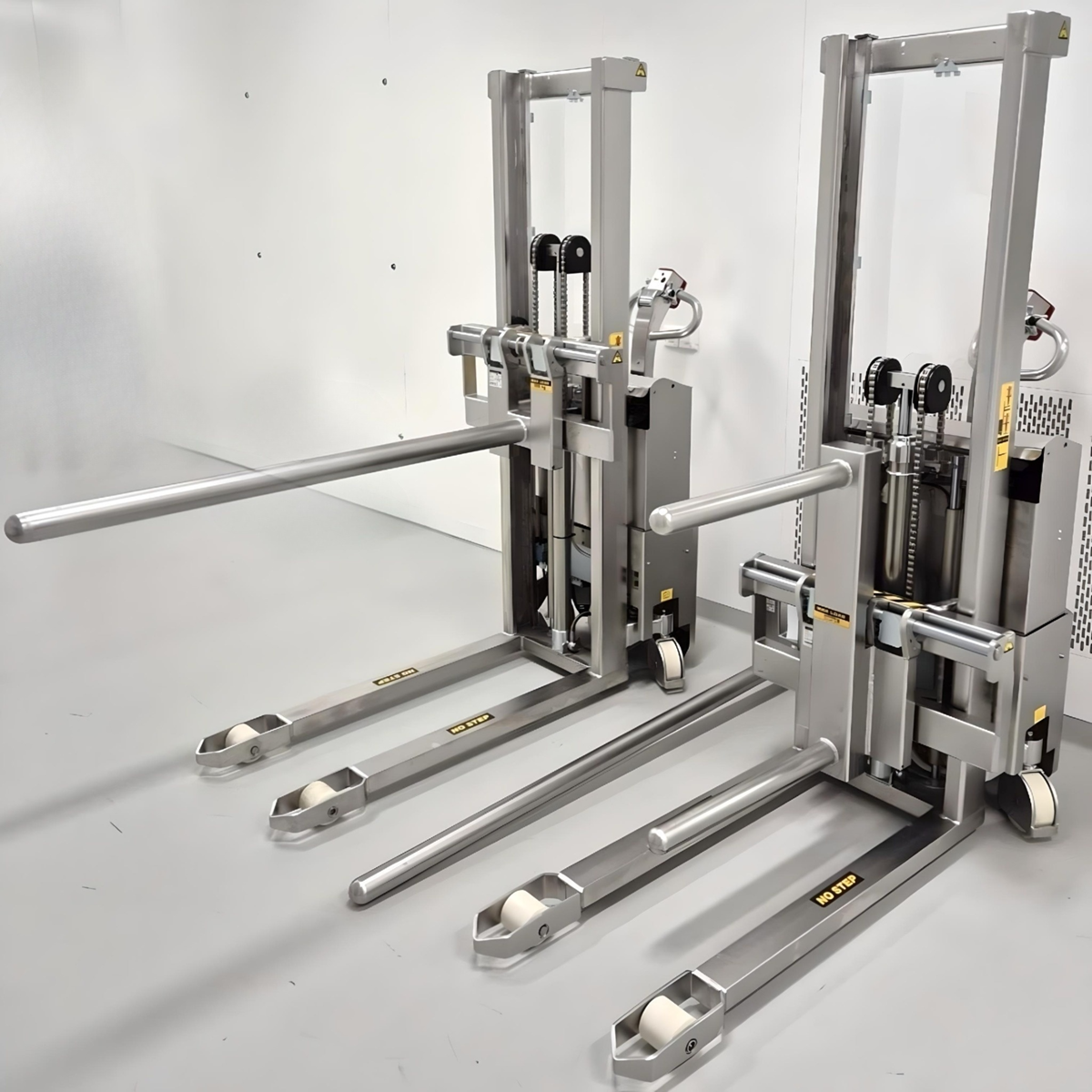

With adjustable support legs, the Logiflex lifts reels via their core from almost any pallet type, including both open and closed pallets (with or without bottom runners). Pallets, drums and other non palletised goods and machinery can also be handled. The Logiflex is perfect for manufacturing production and warehouse packing areas, as well as shops and offices. Many different tasks can be performed with one machine. A stainless steel version is available for high care areas in food production, chemical and pharmaceutical industries. An alternative Reel Rotator is available for turning reels.

Logitrans put their focus on the safety and ergonomic working conditions of the user. The Logiflex can be adjusted to the individual user, and a transparent, impact resistant safety screen gives the operator optimum view conditions. No damage to surroundings and reels: Logiflex has an elegant design with rounded corners.

3 models are available:

  • LFS Mini: manual lift & lower, manual propulsion (for light duty and occasional use applications)
  • ELFS: electric lift & lower, manual propulsion
  • SELFS Mini: fully powered lift, lower and drive (for heavier duty and frequent use applications). Higher lift heights also available (see Logitrans SELFS Maxi)

Features:

  • Lift capacities from 230kg - 1000kg
  • Standard boom spear diameters from 40mm - 70mm, standard boom spear length 800mm or 1150mm
  • Lift heights from 890mm - 3270mm
  • Adjustable support legs for handling different reel sizes. Able to lift reels from both open and closed pallets
  • Boom spear can be easily detached and replaced with other attachments (eg forks, crane arm, platform table, drum turner) for multi-tasking
  • 2 year warranty
  • A wrapover version is available for lifting reels from open pallets, via sides where bottom runners are not present
  • Optional remote control handset available on electric versions
  • This model can be customised with alternative spear sizes and other bespoke features, to handle many different reel types
  • This model can be customised with bespoke platforms, forks, crane arms & drum forks, to suit your specific application

Please feel free to contact us for further information

Logitrans Logiflex Reel Lifter, Straddle Support Legs

Technical Data
Unit
Info
Model
Logitrans LFS Mini / ELFS1001 / SELFS Mini
Operator Type
Pedestrian
Lift Type
Manual / Electric
Load Capacity
Kg
230 / 330 / 430 / 650 / 800 / 1000
Dimensions
Unit
Info
Lowered Height (Forks)
mm
170 (Boom Spear, Without Load)
Lift Height
mm
890 / 1620 / 1880 / 2020 / 2420 / 2820 / 3270
Fork Length
mm
800 / 1150 (Boom Spear)
Width between Straddle Legs
mm
Adjustable: 850-942 / 942-1124 / 1124-1306 / 1240-1422
Wheels
Unit
Info
Fork Roller Material
Nylon or Polyurethane (LFS Mini / ELFS), Vulkollan (SELFS)
Steering Wheel Material
Nylon or Polyurethane (LFS Mini / ELFS)
Drive Wheel Material
Vulkollan (SELFS)
Drive & Performance
Unit
Info
Drive Motor Power (Kw)
kw
0.7 (SELFS Mini)
Travel Speed, loaded/unloaded (Kmh)
Kmh
5.2 / 5.5 (SELFS Mini)
Battery Voltage/Capacity A/h
V / A/h
12 / 119 (ELFS), 24 / 84 (SELFS)
Battery Type
12V Maintenance Free (ELFS) / 24V Maintenance Free (SELFS)
Charger Internal or External / Rating
Internal 12V - 230V (ELFS) / 24V 15A - 230V (SELFS)
Lift Motor Rating
Kw
1.1 (ELFS), 1.2 (SELFS)
Lift Speed with/without load
m/ s
0.05 / 0.07 (ELFS), 0.07 / 0.12 (SELFS)
Lowering Speed with/without load
m/ s
0.12 / 0.04 (ELFS), 0.12 / 0.07 (SELFS)

❮ ❯
 Logitrans Logiflex Boom Spear
 Logitrans Logiflex LFS Mini & ELFS Brochure
 Logitrans Logiflex SELF Mini & SELFS Mini
 Logitrans Remote Control
